  9. ExtFn, 14In Bld, Galvalume, 115V

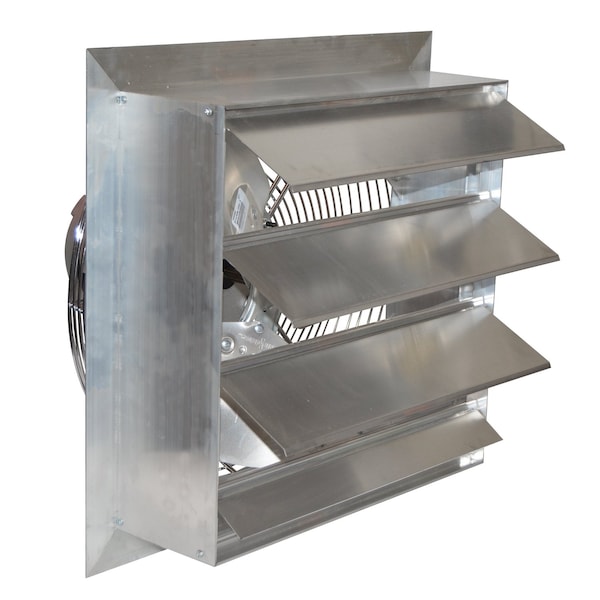

Canarm ExtFn, 14In Bld, Galvalume, 115V AX14-2 - main

ExtFn, 14In Bld, Galvalume, 115V

  • Mfr # AX14-2

  • Zoro # G503538885

product price: $417.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
14 in
Number of Speeds
1
Fan Voltage
115V AC
CFM @ 0.000-In. SP
2170 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AX14-2
Zoro #
G503538885
UPC #
062345205670
Country of Origin
Canada

Dimensions

Blade Dia.
14 in
Width
18 3/4 in
Height
18 3/4 in
Max. Depth
16 in
Overall Height
18 3/4 in
Overall Depth
16 in
Overall Width
18 3/4 in
Blade Diameter
14 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
115V AC
CFM @ 0.000-In. SP
2170 cfm
Exhaust/Supply Fan Motor HP
1/4 hp
Square Opening Required
15 3/4 in
Item
Exhaust Fan
Sones @ 0.000-In. SP @ 5 Ft.
14.0 sones
Blade Material
Steel
Motor Insulation
Class B
Standards
OSHA
Frame Material
Aluminum
Thermal Protection
Yes
Motor Enclosure
Totally Enclosed Air Over
Bearing Type
Ball
Motor Type
PSC
Includes
Intake Guard, Shutter
Frame Finish
Aluminum
Guard Material
Chrome Plated Wire
Wire Guard Finish
Chrome
CFM @ 0.250-In. SP
1860 cfm
Number of Blades
3
Phase
1
Full Load Amps
2.7 A
Motor RPM
1625 RPM
Hz
50 Hz
Max. Ambient Temp.
40 Degrees C
CFM @ 0.125-In. SP
2030 cfm
Maximum Noise Level
14 sones
Full Load Current
2.7 A
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.000 in SP
2,170 cfm
Assembled
Assembled
Exhaust Airflow @ 0.125 in SP
2,030 cfm
Motor Horsepower
1/4 hp
Motor Speed
1,625 RPM
Nameplate Voltage
115V AC
Ventilation Type
Exhaust
Frequency
50 Hz
Exhaust Airflow @ 0.250 in SP
1,860 cfm
Noise Level @ 0.000 in SP @ 5 ft
14 sones

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 14 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 2,170 cfm, Frame Finish Aluminum, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Intake Guard, Shutter, Maximum Noise Level 14 sones
