  9. Panel ExtFn, 12In Bl Dia, Stl, 230/460 V
Canarm Panel ExtFn, 12In Bl Dia, Stl, 230/460 V P12-4M - main

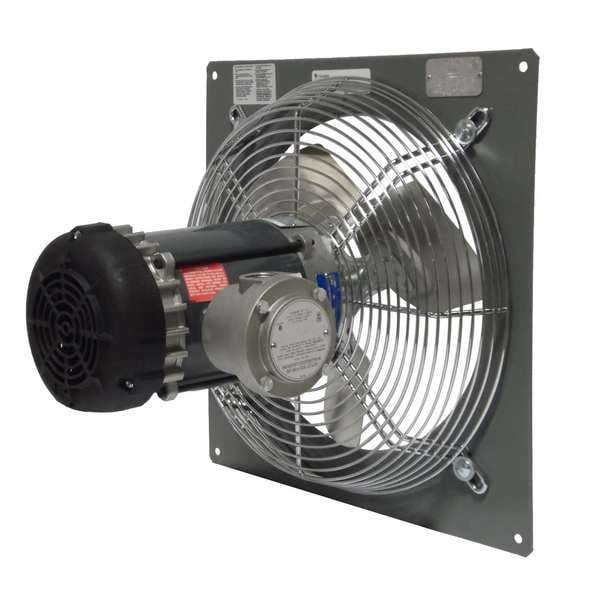

Panel ExtFn, 12In Bl Dia, Stl, 230/460 V

  • Mfr # P12-4M

  • Zoro # G803541172

product price: $943.99
/ea
Free Shipping & Returns

Key Features

Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Steel
Number of Speeds
Variable
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12-4M
Zoro #
G803541172
UPC #
062345204611
Country of Origin
Canada

Dimensions

Overall Depth
13 3/4 in
Overall Width
17 1/4 in
Blade Diameter
12 in
Overall Height
17 1/4 in

Details

Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Steel
Number of Speeds
Variable
Number of Blades
3
Item
Panel Exhaust Fan
Frame Material
Steel
Motor Type
DC
Motor Insulation
Class 1
Standards
OSHA
Bearing Type
Ball
Guard Material
Steel
Frame Finish
Powder Coated
Nameplate Voltage
230/460V AC
Drive Type
Direct Drive
Maximum Noise Level
12 sones
Vent Design
Ductless
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Maximum Ambient Operating Temperature
104 Degrees F
Mounting Orientation
Horizontal
Speed Controllable
No
Motor Horsepower
1/3 hp
Noise Level @ 0.000 in SP @ 5 ft
12 sones
Includes Grill
No
Exhaust Airflow @ 0.125 in SP
1,575 cfm
Maximum Airflow
1,670 cfm
Ventilation Type
Exhaust
Exhaust Airflow @ 0.000 in SP
1,670 cfm
Motor Speed
1,725 RPM
Assembled
Assembled
Exhaust Airflow @ 0.250 in SP
1,450 cfm
Frequency
50 Hz
Full Load Current
6.6 A
Guard Finish
Chrome
Guard Type
Intake
Includes Motor
Yes

Description

Panel Exhaust Fan, Assembled Assembled, Blade Diameter 12 in, Blade Material Steel, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,670 cfm, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G, Maximum Airflow 1,670 cfm, Maximum Noise Level 12 sones
