Shop CANARM

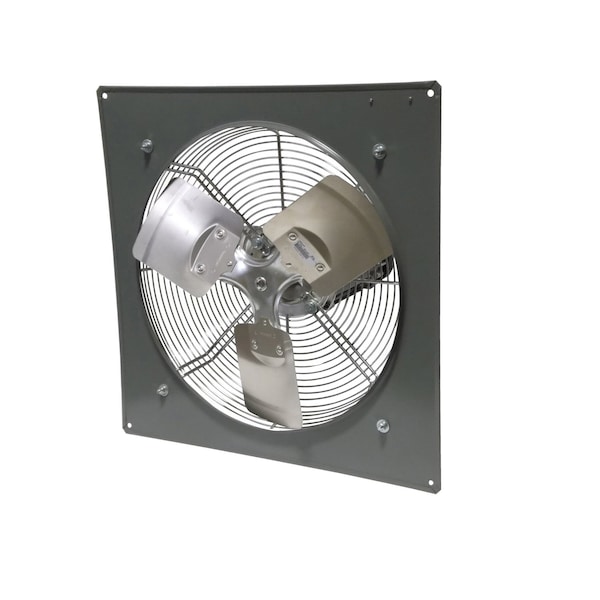

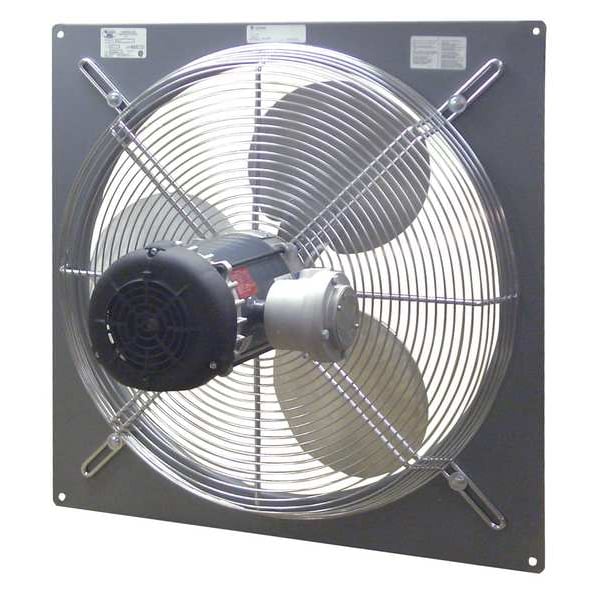

Panel Fan, 24In Bld Dia, Steel, 230/460 V

  • Mfr # P24-4M

  • Zoro # G903541171

product price:
$
1,168.99
/ea
Additional $125.00 delivery surcharge applies per item.
See details

Key Features

Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Steel
Number of Speeds
1
Number of Blades
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P24-4M
Zoro #
G903541171
UPC #
062345380735
Country of Origin
Canada
Phase
3
Motor Enclosure
Totally Enclosed Air Over
Blade Material
Steel
Number of Speeds
1
Number of Blades
3
Item
Panel Fan
Frame Material
Steel
Frame Finish
Powder Coated
Motor Insulation
Class 1
Guard Material
Steel
Standards
OSHA
Motor Type
DC
Bearing Type
Ball
Ventilation Type
Exhaust
Assembled
Assembled
Motor Horsepower
1/3 hp
Motor Speed
1,725 RPM
Nameplate Voltage
230/460V AC
Exhaust Airflow @ 0.125 in SP
5,330 cfm
Drive Type
Direct Drive
Guard Type
Intake
Exhaust Airflow @ 0.000 in SP
5,520 cfm
Exhaust Airflow @ 0.250 in SP
5,130 cfm
Frequency
50 Hz
Mounting Orientation
Horizontal
Noise Level @ 0.000 in SP @ 5 ft
30 sones
Includes Motor
Yes
Full Load Current
6.6 A
Maximum Airflow
5,520 cfm
Maximum Noise Level
30 sones
Guard Finish
Chrome
Vent Design
Ductless
Speed Controllable
No
Hazardous Location Class
Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Maximum Ambient Operating Temperature
104 Degrees F
Includes Grill
No

Description

Panel Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Steel, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 5,520 cfm, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Chrome, Guard Material Steel, Guard Type Intake, Hazardous Location Class Class I, Div 1, Group C and D; Class II, Div 1, Group F and G, Maximum Airflow 5,520 cfm, Maximum Noise Level 30 sones
