Shop CANARM

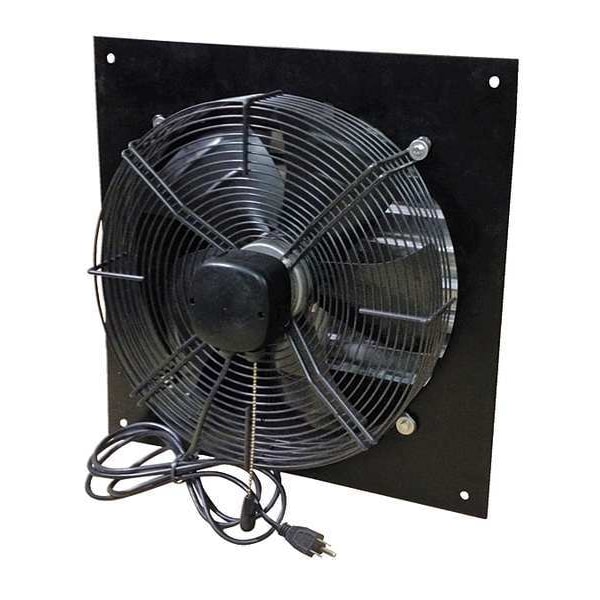

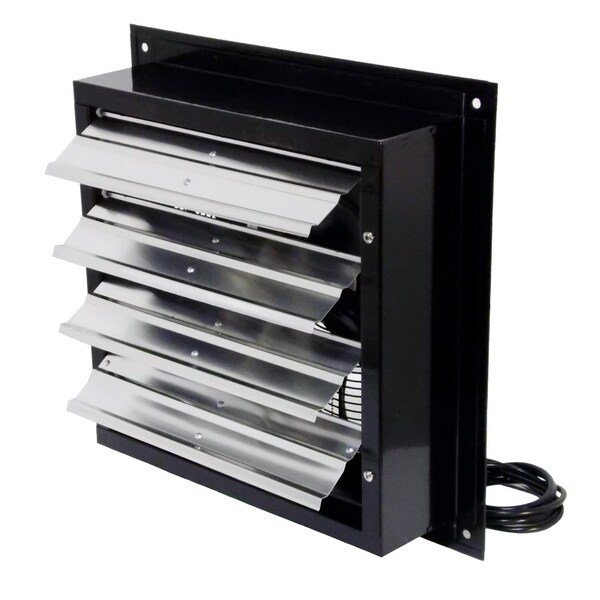

Shutter Mount Exhaust Fan, 16", 3 Speed, 2300/2000/1800 cfm

  • Mfr # XFS16

  • Zoro # G8509076

product price:
$
309.99
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
16 in
Number of Speeds
3
Fan Voltage
115V AC
CFM @ 0.000-In. SP
2300/2000/1800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XFS16
Zoro #
G8509076
UPC #
062345353838
Country of Origin
China
Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
3
Fan Voltage
115V AC
CFM @ 0.000-In. SP
2300/2000/1800
Exhaust/Supply Fan Motor HP
1/8 hp
Square Opening Required
10-1/2 to 20 in
Item
Shutter Mount Exhaust Fan
Bearing Type
Permanently Lubricated Sealed Ball
Motor Enclosure
Totally Enclosed Air Over
Speed Control Item Number
CN5041
Voltage
115V
Wire Guard Finish
Powder Coated
Frame Material
Steel
Standards
ETL, OSHA Compliant
Phase
1
Max. Ambient Temp.
40 Degrees C
Full Load Amps
2.0/1.8/1.6 A
Drive Package Included
No
Number of Blades
5
Hz
60
Motor Insulation
Class A
Motor Type
Single Phase
Thermal Protection
Yes
Blade Material
Steel
Guard Material
Steel
Includes
Power Cord with 115V 3 Prong Plug, Shutter, Wire Guard
Frame Finish
Powder Coated
Includes Dehumidistat
No
Maximum Noise Level
8 sones
Number of Fans
1
Noise Level @ 0.100 in SP @ 5 ft
8 sones
Wattage
230 W
Vent Design
Ductless
Drive Type
Direct Drive
Control Type
Pull Chain
Noise Level @ 0.000 in SP @ 5 ft
8 sones
Exhaust Airflow @ 0.100 in SP
2,300 cfm
Motor Horsepower
1/8 hp
Includes Grill
No
Housing Finish
Powder-Coated
Fan Style
Shutter-Mounted
Motor Speed
1,630 RPM
Assembled
Assembled
Includes Motor
Yes
Electrical Connection
Plug-In
Guard Finish
Powder Coated
Full Load Current
2 A
Housing Material
Steel
Exhaust Airflow @ 0.000 in SP
2,300 cfm
Maximum Ambient Operating Temperature
158 Degrees F
Nameplate Voltage
115V AC
Method of Construction
Stamped
Frequency
60 Hz
Guard Type
Intake
Speed Controllable
Yes
Ventilation Type
Exhaust
Exhaust Airflow @ 0.125 in SP
2,300 cfm
Maximum Airflow
2,300 cfm
Supply Airflow @ 0.000 in SP
2,300 cfm

Description

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 16 in, Blade Material Steel, Control Type Pull Chain, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 2,300 cfm, For Cut-Out Height 18 in, For Cut-Out Width 18 in, For Maximum Wall Thickness 5 in, For Minimum Wall Thickness 5 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Steel
