Shop CANARM

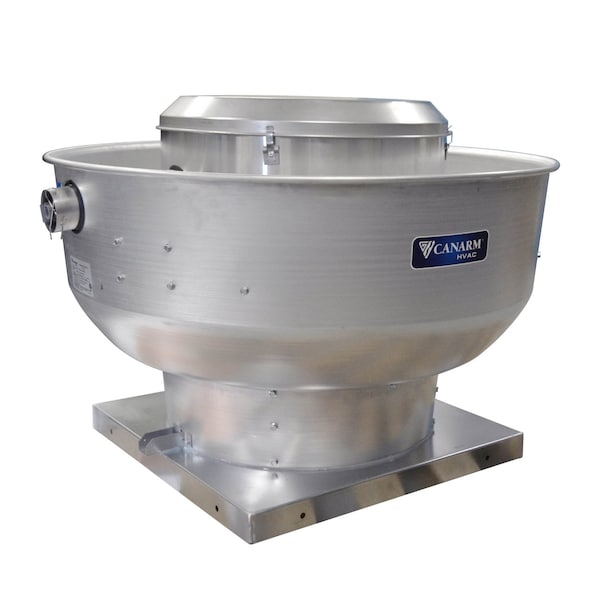

Upblast Exhaust Fan, 575V AC

  • Mfr # ALX165UB30150P

  • Zoro # G216665373

product price:
$
1,391.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Safety Features
Quick Release Latches
Series
ALX-UB
Wheel Material
Aluminum
Maximum Inlet Air Temperature
300 Degrees F
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ALX165UB30150P
Zoro #
G216665373
UPC #
62345559223
Country of Origin
Canada

Dimensions

Overall Height
31 1/8 in
Base Height
2 in
Overall Diameter
37 1/2 in
Wheel Diameter
16 1/2 in
Base Diameter
24 3/4 in
Overall Depth
37 1/2 in
Overall Width
37 1/2 in
Base Width
24 3/4 in

Details

Item
Upblast Exhaust Fan
Safety Features
Quick Release Latches
Series
ALX-UB
Wheel Material
Aluminum
Maximum Inlet Air Temperature
300 Degrees F
Base Shape
Square
Nameplate Voltage
575V AC
Includes Drive Package
Yes
For High-Static Pressure Applications
No
Electrical Connection
Wire Leads
Exhaust Airflow @ 0.500 in SP
2,792 cfm
Motor Enclosure
Open Dripproof
Weight
180 lb
Drive Type
Belt Drive
Application
Commercial, Industrial, Residential
Housing Material
Aluminum
Number of Speeds
Variable
Mount Type
Roof Curb
For Air Type
Kitchen Air
Motor Horsepower
1 1/2 hp
High-Efficiency Motor
No
Housing Material Fabrication
Spun
Wheel Type
Backward Inclined
Features
Quick Release Latches for Easy Motor Access, Spun Aluminum Housing will Not Rust, Chip or Peel, Units upto 24 in Can be Wall Mounted
Standards
cETLus
Assembly
Assembled
Maximum Static Pressure
1 1/2 in wc
Motor Speed
1,605 RPM
Phase
3
Exhaust Airflow @ 0.000 in SP
3,060 cfm
Includes Motor
Yes
Maximum Fan Speed
1,605 RPM

Description

Upblast Exhaust Fan, Application Commercial, Industrial, Residential, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter 24 3/4 in, Base Width 24 3/4 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 3,060 cfm, Nameplate Voltage 575V AC, Phase 3, Motor Horsepower 1 1/2 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No, For High-Static Pressure Applications No
