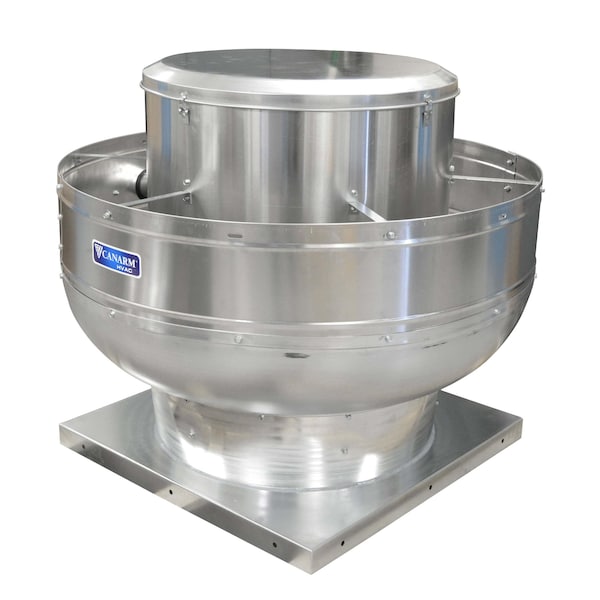

Upblast Exhauster, 1 Phase, 1-1/2 hp

  • Mfr # ALX245UBT10150

  • Zoro # G307963968

product price:
$
2,021.99
/ea
Additional $185.00 delivery surcharge applies per item.
See details

Key Features

Number of Speeds
1
Includes
Drives, Motors, Wired Disconnect
Standards
UL 705
Housing Material
Aluminum
Base Width
33 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ALX245UBT10150
Zoro #
G307963968
UPC #
062345391014
Country of Origin
Canada

Dimensions

Base Width
33 1/8 in
Overall Height
37 in
Base Length
33 1/8 in
Base Height
2.5 in
Overall Width
43 3/4 in
Wheel Diameter
24 1/2 in
Cutout Length
29 in
Overall Depth
33 1/8 in

Details

Number of Speeds
1
Includes
Drives, Motors, Wired Disconnect
Standards
UL 705
Housing Material
Aluminum
Phase
1
Item
Upblast Exhauster
Wheel Material
Aluminum
Speed Controllable
Yes
Wheel Type
Backward Inclined
Drive Type
Belt Drive
Exhaust Airflow @ 0.125 in SP
5,450 cfm
Brake Horsepower
1 11/50 hp
Features
Quick Release Latches for Easy Motor Access, Units upto 24 in can be Wall Mounted
Exhaust Airflow @ 0.500 in SP
4,655 cfm
Includes Drive Package
Yes
Housing Material Fabrication
Spun
Sound Level
18.9 sones @ 1/2 in SP
Mount Type
Roof Curb
Exhaust Airflow @ 0.250 in SP
5,208 cfm
For Air Type
Kitchen Air
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Airflow @ 0.000 in SP
5,668 cfm
Maximum Static Pressure
1 in wc
Exhaust Airflow @ 0.000 in SP
5,668 cfm
Motor Speed
889 RPM
Assembly
Assembled
Exhaust Airflow @ 0.375 in SP
4,955 cfm
Series
ALX-UB
Weight
183 lb
Electrical Connection
Wire Leads
Motor Horsepower
1 1/2 hp
Includes Motor
Yes
Power Source
Electric Corded
Nameplate Voltage
115/230V AC
High-Efficiency Motor
No
For High-Static Pressure Applications
Yes
Motor Enclosure
Open Dripproof
Base Shape
Square
Maximum Inlet Air Temperature
300 Degrees F
Power Source - TS Only
Electric Corded
Power Source - old
Electric Corded

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 33 1/8 in, Base Length 33 1/8 in, Base Shape Square, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 5,668 cfm, Nameplate Voltage 115/230V AC, Phase 1, Motor Horsepower 1 1/2 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
