Shop CANARM

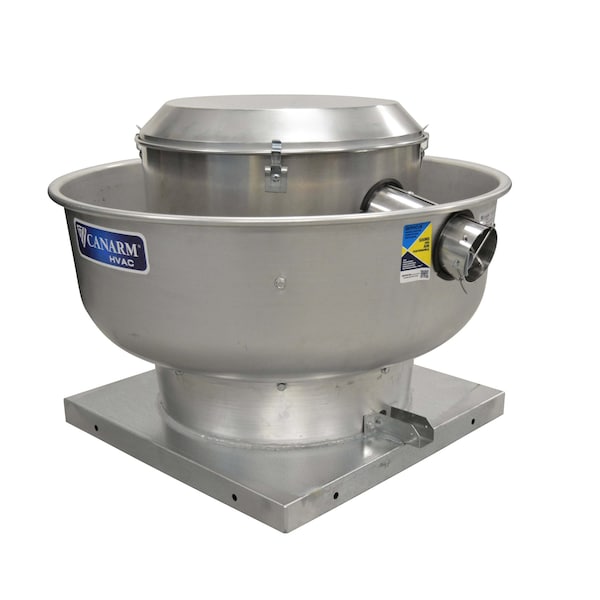

Upblast Exhauster, 1 Phase, 1 hp

  • Mfr # ALX150-UD100S

  • Zoro # G207963983

product price:
$
700.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Number of Speeds
1
Housing Material
Aluminum
Speed Controllable
No
Wheel Type
Backward Inclined
Base Length
21 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ALX150-UD100S
Zoro #
G207963983
UPC #
062345411132
Country of Origin
Canada

Dimensions

Base Length
21 in
Base Width
21 in
Overall Height
23 1/8 in
Base Height
2 in
Overall Width
32 1/8 in
Cutout Length
17 in
Wheel Diameter
15 in
Overall Depth
21 in

Details

Number of Speeds
1
Housing Material
Aluminum
Speed Controllable
No
Wheel Type
Backward Inclined
Item
Upblast Exhauster
Phase
1
Standards
UL 705
Drive Type
Direct Drive
Wheel Material
Aluminum
Power Source
Electric Corded
For High-Static Pressure Applications
Yes
Maximum Static Pressure
1 1/2 in wc
Motor Speed
1,650 RPM
Electrical Connection
Wire Leads
Motor Horsepower
1 hp
Exhaust Airflow @ 0.250 in SP
2,375 cfm
Housing Material Fabrication
Spun
For Air Type
Kitchen Air
Frequency
50/60 Hz
Includes Drive Package
Yes
Includes Motor
Yes
Weight
58 lb
Exhaust Airflow @ 0.000 in SP
2,450 cfm
Exhaust Airflow @ 0.500 in SP
2,275 cfm
Series
ALX-UD
Mount Type
Roof Curb
Features
Quick Release Latches for Easy Motor Access
Airflow @ 0.000 in SP
2,450 cfm
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Nameplate Voltage
115/230V AC
High-Efficiency Motor
No
Motor Enclosure
Open Dripproof
Base Shape
Square
Maximum Inlet Air Temperature
300 Degrees F
Assembly
Assembled
Power Source - TS Only
Electric Corded
Power Source - old
Electric Corded

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 21 in, Base Length 21 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 2,450 cfm, Nameplate Voltage 115/230V AC, Phase 1, Motor Horsepower 1 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
