  9. Upblast Exhauster, 1 Phase, 1 hp

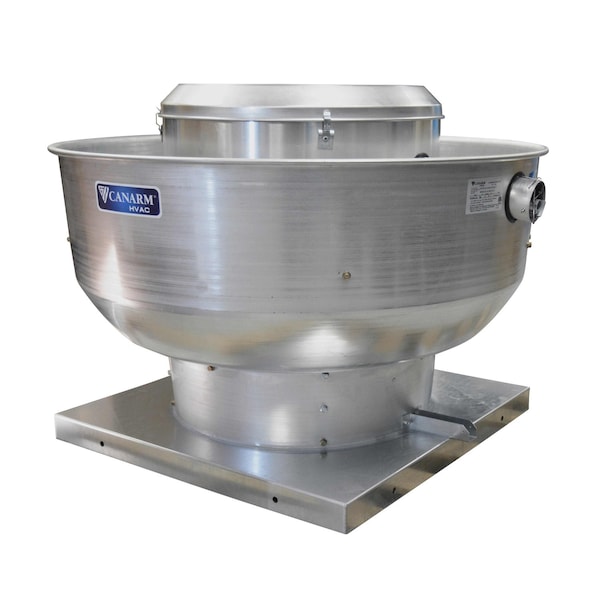

Canarm Upblast Exhauster, 1 Phase, 1 hp ALX180-UD100EC - main

Upblast Exhauster, 1 Phase, 1 hp

  • Mfr # ALX180-UD100EC

  • Zoro # G307963951

product price: $1,340.99
/ea
Additional $215.00 delivery surcharge applies per item.
See details

Key Features

Number of Speeds
Variable
Phase
1
Base Length
28 in
Standards
UL 705
Base Width
28 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ALX180-UD100EC
Zoro #
G307963951
UPC #
062345386942
Country of Origin
Canada

Dimensions

Base Length
28 in
Base Width
28 in
Overall Height
31 3/4 in
Base Height
2 in
Wheel Diameter
18 1/4 in
Overall Width
37 1/2 in
Cutout Length
20.8 in
Overall Depth
28 in

Details

Number of Speeds
Variable
Phase
1
Standards
UL 705
Wheel Material
Aluminum
Drive Type
Direct Drive
Motor Type
Electronically Commutated
Item
Upblast Exhauster
Speed Controllable
Yes
Housing Material
Aluminum
Wheel Type
Backward Inclined
Power Source
Electric Corded
Airflow @ 0.000 in SP
3,400 cfm
Motor Horsepower
1 hp
Maximum Static Pressure
1 1/4 in wc
Exhaust Airflow @ 0.500 in SP
3,000 cfm
Electrical Connection
Wire Leads
For High-Static Pressure Applications
Yes
Weight
116 lb
Frequency
50/60 Hz
High-Efficiency Motor
Yes
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Mount Type
Roof Curb
Housing Material Fabrication
Spun
Exhaust Airflow @ 0.000 in SP
3,400 cfm
Includes Drive Package
Yes
Features
On-Board Speed Adjustment Allows Simple Setup and Balancing with LED Display, Quick Release Latches for Easy Motor Access
Includes Motor
Yes
For Air Type
Clean Air
Exhaust Airflow @ 0.250 in SP
3,200 cfm
Series
ALX-UD-EC
Motor Speed
1,200 RPM
Assembly
Assembled
Maximum Inlet Air Temperature
300 Degrees F
Base Shape
Square
Nameplate Voltage
115/208-230V AC
Motor Enclosure
Open Dripproof

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 28 in, Base Length 28 in, Base Shape Square, Maximum Static Pressure 1 1/4 in wc, Exhaust Airflow @ 0.000 in SP 3,400 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor Yes
