  9. Upblast Exhauster, 1 Phase, 1/2 hp

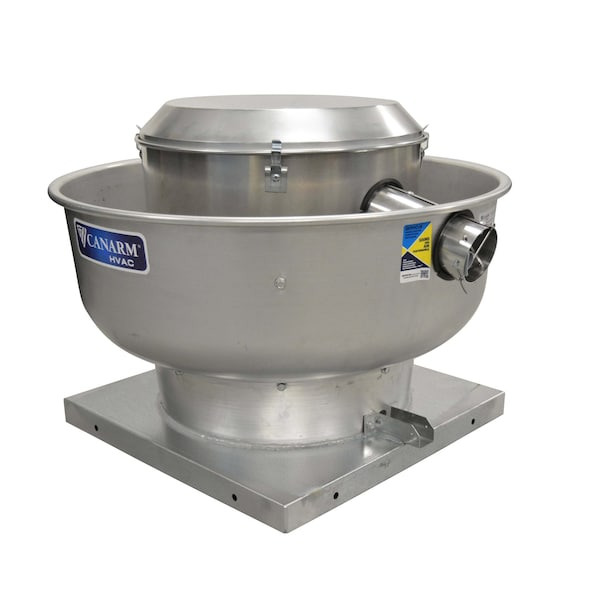

Canarm Upblast Exhauster, 1 Phase, 1/2 hp ALX120-UD050EC - main

Upblast Exhauster, 1 Phase, 1/2 hp

  • Mfr # ALX120-UD050EC

  • Zoro # G307963944

product price: $964.99
/ea
Free Shipping & Returns

Key Features

Number of Speeds
Variable
Phase
1
Base Height
1.5 in
Standards
UL 705
Motor Type
Electronically Commutated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ALX120-UD050EC
Zoro #
G307963944
UPC #
062345412214
Country of Origin
Canada

Dimensions

Base Height
1.5 in
Base Length
19 in
Base Width
19 in
Overall Height
19 in
Overall Width
25 in
Cutout Length
15 in
Wheel Diameter
12 1/4 in
Overall Depth
19 in

Details

Number of Speeds
Variable
Phase
1
Standards
UL 705
Motor Type
Electronically Commutated
Wheel Type
Backward Inclined
Drive Type
Direct Drive
Housing Material
Aluminum
Item
Upblast Exhauster
Wheel Material
Aluminum
Speed Controllable
Yes
Exhaust Airflow @ 0.000 in SP
1,548 cfm
For High-Static Pressure Applications
Yes
Motor Speed
1,800 RPM
Features
On-Board Speed Adjustment Allows Simple Setup and Balancing with LED Display, Quick Release Latches for Easy Motor Access
Power Source
Electric Corded
Mount Type
Roof Curb
Electrical Connection
Wire Leads
Weight
37 lb
Series
ALX-UD-EC
Airflow @ 0.000 in SP
1,548 cfm
Housing Material Fabrication
Spun
For Air Type
Clean Air
Includes Motor
Yes
High-Efficiency Motor
Yes
Exhaust Airflow @ 0.500 in SP
1,282 cfm
Maximum Static Pressure
1 1/4 in wc
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Includes Drive Package
Yes
Exhaust Airflow @ 0.250 in SP
1,422 cfm
Frequency
50/60 Hz
Motor Horsepower
1/2 hp
Base Shape
Square
Nameplate Voltage
115/208-230V AC
Motor Enclosure
Open Dripproof
Assembly
Assembled
Maximum Inlet Air Temperature
300 Degrees F

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 19 in, Base Length 19 in, Base Shape Square, Maximum Static Pressure 1 1/4 in wc, Exhaust Airflow @ 0.000 in SP 1,548 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/2 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor Yes
