Shop CANARM

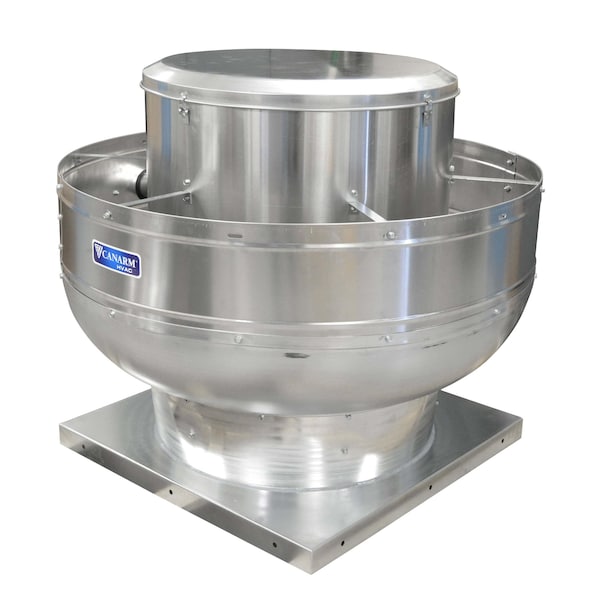

Upblast Exhauster, 3 Phase, 1-1/2 hp

  • Mfr # ALX210UBT30150M

  • Zoro # G107963601

product price:  $1,617.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Number of Speeds
1
Includes
Drives, Motors, Wired Disconnect
Base Width
33 1/8 in
Phase
3
Base Length
33 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ALX210UBT30150M
Zoro #
G107963601
UPC #
062345390987
Country of Origin
Canada

Dimensions

Base Width
33 1/8 in
Base Length
33 1/8 in
Base Height
2.5 in
Overall Height
36 1/4 in
Wheel Diameter
21 1/4 in
Overall Width
43 3/4 in
Cutout Length
29 in
Overall Depth
33 1/8 in

Details

Number of Speeds
1
Includes
Drives, Motors, Wired Disconnect
Phase
3
Wheel Material
Aluminum
Speed Controllable
Yes
Drive Type
Belt Drive
Wheel Type
Backward Inclined
Standards
UL 705
Housing Material
Aluminum
Item
Upblast Exhauster
Electrical Connection
Wire Leads
Series
ALX-UB
Includes Drive Package
Yes
Brake Horsepower
1 19/50 hp
Weight
178 lb
Sound Level
21 sones @ 1/2 in SP
Power Source
Electric Corded
Exhaust Airflow @ 0.500 in SP
4,152 cfm
Exhaust Airflow @ 0.375 in SP
4,336 cfm
Application
Commercial Buildings, Offices, Restaurants, Warehouses
Exhaust Airflow @ 0.125 in SP
4,640 cfm
Exhaust Airflow @ 0.000 in SP
4,792 cfm
Mount Type
Roof Curb
Assembly
Assembled
Maximum Static Pressure
1 1/4 in wc
Features
Quick Release Latches for Easy Motor Access, Units upto 24 in can be Wall Mounted
Housing Material Fabrication
Spun
Exhaust Airflow @ 0.250 in SP
4,488 cfm
Motor Speed
1,132 RPM
Motor Horsepower
1 1/2 hp
For Air Type
Kitchen Air
Includes Motor
Yes
Airflow @ 0.000 in SP
4,792 cfm
High-Efficiency Motor
No
For High-Static Pressure Applications
Yes
Motor Enclosure
Open Dripproof
Maximum Inlet Air Temperature
300 Degrees F
Base Shape
Square
Nameplate Voltage
230/460V AC
Power Source - TS Only
Electric Corded

Description

Upblast Exhauster, Application Commercial Buildings, Offices, Restaurants, Warehouses, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 33 1/8 in, Base Length 33 1/8 in, Base Shape Square, Maximum Static Pressure 1 1/4 in wc, Exhaust Airflow @ 0.000 in SP 4,792 cfm, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 1 1/2 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
