Shop CARBOLITE

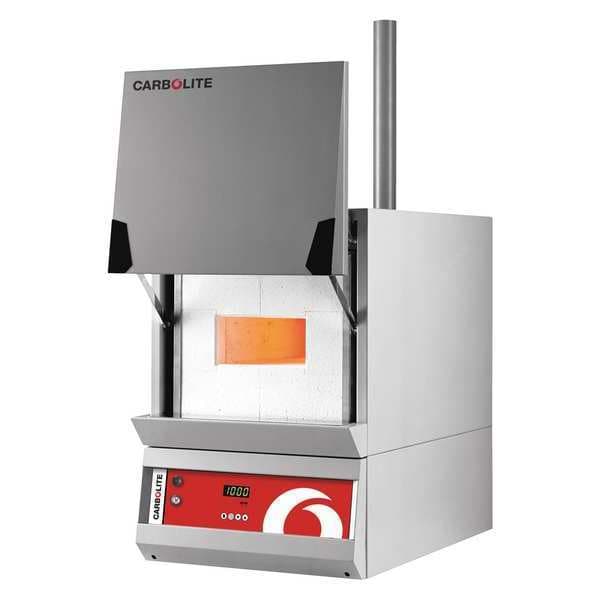

Ashing Furnace, 1100C, 7L, 208/240V

  • Mfr # AAF1107-230SN
  • Zoro # G4999827
product price:
$
7,170.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
29 in
Overall Height
25 5/8 in
Overall Width
16 7/8 in
Convection Type
Gravity
Capacity
0.35 cu ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AAF1107-230SN
Zoro #
G4999827
UPC #
-
Country of Origin
United Kingdom
Item
Ashing Furnace
Convection Type
Gravity
Capacity
0.35 cu ft
Volume
0.35 cu ft
Wattage
4,000 W
Voltage
208/240V
Features
Powerful Elements with Graded Winding Compensate for Heat Loss Due to High Airflow
Standards
ASTM D3174-04 2010, ASTM D4422, ISO 1171:2010
Programmable
Not Programmable
Temp. Range
Up to 1100 Degrees C
Special Features
155 Minute Heat-Up Time, 4 To 5 Air Changes per Minute, ASTM Standard D 3174-00
Preheat Time
155 min
Hz
60 Hz
Includes
Single Ramp
Power Requirement
208/240V, 50/60 Hz, 1-Phase
Number of Doors
1
Power Consumption
3900 Watts
Chamber Material
Refratory Ceramic
Material
Resistive, Wire-Wound Heating Elements, Low Mass Ceramic Insulation
Thermostat
Digital, Single Set-Point Controller, Type K Thermocouple
Housing Material
Steel
Temp. Range (C)
1100 Degrees
Capacity (Cu.-Ft.)
0.247
Watts
2,400 W
Temp. Range (F)
2012 Degrees
Number of Shelves
1
Door Material
Ceramic
Capacity (ML)
7,000
Temp. Uniformity
+/-5 Degrees C
Frequency
60 Hz
Temperature Uniformity
+/-5 Degrees C
Interior Material
Ceramic
Number of Shelves Included
1
Timer Duration - Maximum
155 min
Display Type
Digital
Product Type
Ashing Furnace
Temperature Setting - Maximum
1,100 Degrees C
Housing Finish
Zinc Plated
Vacuum Pump Required
No
Maximum Number of Shelves
1
Number of Temperature Settings
Any Temperature Throughout the Full Range
Shelving Material
Inconel 601
Plug Type
No Plug Provided
Number of Displays
1
Temperature Setting - Minimum
Ambient +20 Degrees C
Color
Gray
Control Type
PID Temperature
Temperature Accuracy Tolerance
+/-1 Degrees C

Description

Ashing Furnace, Convection Type Gravity, Temp. Range (C) 1100 Degrees , Temp. Range (F) 2012 Degrees , Overall Height 25 5/8 in, Overall Width 16 7/8 in, Overall Depth 29 in, Chamber Height 3.54 in, Chamber Width 6.7 in, Chamber Depth 17.9 in, Hz 60, Voltage 208/240V, Watts 2,400 W, Capacity (Cu.-Ft.) 0.247, Capacity (ML) 7,000, Programmable Not Programmable, Temp. Uniformity +/-5 Degrees C, Preheat Time 155 min, Chamber Material Refratory Ceramic, Door Material Ceramic, Housing Material Steel
