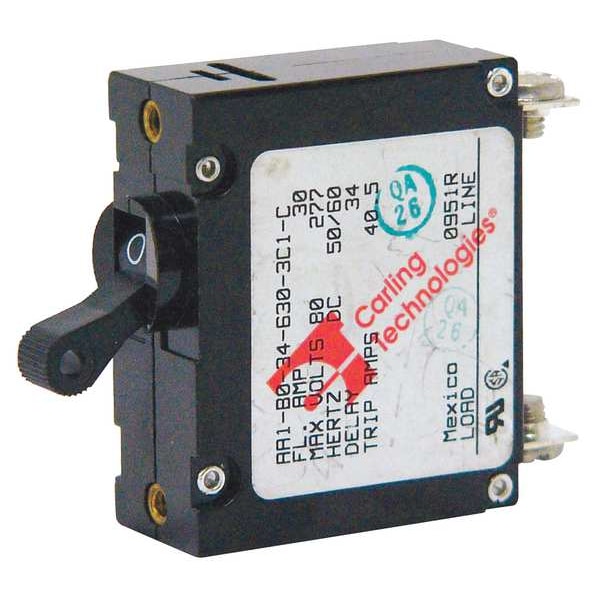

Circuit Breaker, A Series, 30A, 1 Pole, 250/277V AC, 2kA at 120V AC, C Curve
Mfr # AA1-B0-34-630 -5D1-C
Zoro # G4301062
CAD Available
product price:Â $15.19
/eaKey Features
CAD Drawing
Series
A
Number of Poles
1
AC Voltage Rating
250/277V AC
Circuit Breaker Type
Magnetic
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
AA1-B0-34-630 -5D1-C
Zoro #
G4301062
UPC #
-
Country of Origin
Mexico
Dimensions
Width
3/4 in
Depth
2.03 in
Height
2 in
Max. Wire Size
Not Specified
Panel Cutout Size
2.187 in x 0.770 in
Max. Panel Thickness
0.1 in
Mounting Hole Thread Size
#6-32
Length
2 in
Description
Panel Mount Circuit Breaker, Amps 30 A, AC Voltage Rating 250/277V AC, Terminal Connection #10-32 Screw, DC Voltage Rating 80V DC, Magnetic, Number of Poles 1, Circuit Breaker Actuator Toggle, Max. AIR Rating 2kA at 120V AC, Curve Type Medium, Phase Single, Mounting Type Threaded Insert, Actuator Color Black, Actuator Legend On/Off, Panel Cutout Size 2.187 in x 0.770 in, Max. Panel Thickness 0.1 in, Mounting Hole Thread Size #6-32, Max. Wire Size Not Specified, Length 2 in, Width 0.75 in
