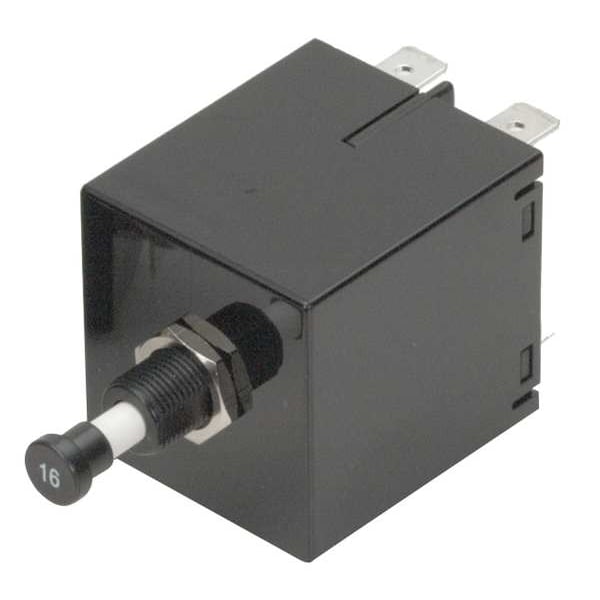

Circuit Breaker, M Series, 10A, 2 Pole, 250V AC, 1.5kA at 120V AC, C Curve
Mfr # MU2-B-34-610-1-A21-B-E
Zoro # G4131617
CAD Available
product price:Â $31.89
/eaKey Features
CAD Drawing
Series
M
AC Voltage Rating
250V AC
Circuit Breaker Type
Magnetic
Phase
1
Circuit Breaker Actuator
Push Button
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MU2-B-34-610-1-A21-B-E
Zoro #
G4131617
UPC #
-
Country of Origin
Mexico
Dimensions
Width
1.30 in
Depth
1.85 in
Height
1.38 in
Max. Wire Size
Not Specified
Panel Cutout Size
1.139 in x 1.420 in
Max. Panel Thickness
0.1 in
Length
1.38 in
Description
Panel Mount Circuit Breaker, Amps 10 A, AC Voltage Rating 250V AC, Terminal Connection 1/4 in Tab, DC Voltage Rating 80V DC, Magnetic, Number of Poles 2, Circuit Breaker Actuator Push Button, Max. AIR Rating Not Rated, Curve Type Medium, Phase Single, Mounting Type Snap-In, Actuator Color White, Panel Cutout Size 1.139 in x 1.420 in, Max. Panel Thickness 0.1 in, Max. Wire Size Not Specified, Length 1.38 in, Width 1.3 in, Depth 1.85 in, Min. Operating Temp. -40 Degrees F
