Shop CARLING TECHNOLOGIES

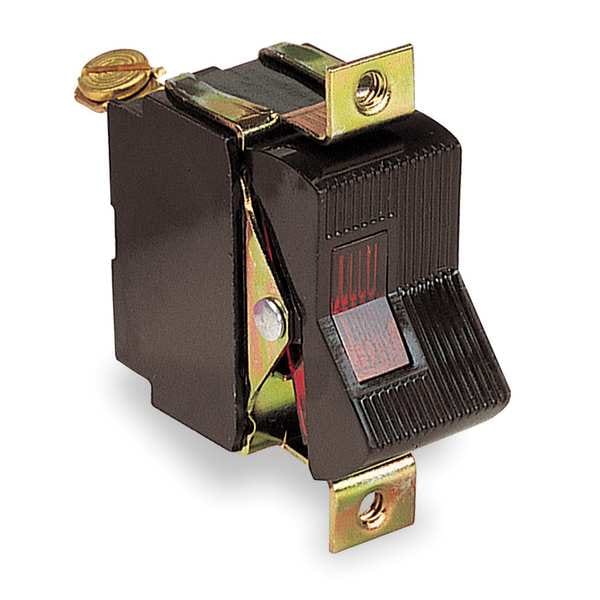

Lighted Rocker Switch, SPST, 3 Connections

  • Mfr # LTILA54-1LBL-RC-A/125N

  • Zoro # G2596711

product price:  $6.75
/ea

Key Features

Mounting Hole
0.625 in x 1.625 in
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Switch Function
ON/OFF
Body Color
Black
Terminals
Screw
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LTILA54-1LBL-RC-A/125N
Zoro #
G2596711
UPC #
-
Country of Origin
Mexico

Dimensions

Mounting Hole Width
0.83 in
Mounting Hole Length
1.45 in

Details

Item
Lighted Rocker Switch
Mounting Hole
0.625 in x 1.625 in
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Switch Function
ON/OFF
Body Color
Black
Terminals
Screw
Switch Color
Red
Number of Connections
3
Special Features
6-32 SCREW HOLES 1.62 in APART, Red Neon (On)
HP
3/4 hp
Contact Form
SPST
DC Contact Rating
15 A @ 15 to 28 V
Standards
CSA, UL Listed
Product Type
Rocker Switch
Series
LTIL
Lamp Module Type
No Lamp Module Included
NEMA Enclosure Rating
No Enclosure
Lens Color
Red
Lamp Type
Neon
Horsepower
1/2 hp @ 125 to 250 V
Switch Function Configuration
On/Off
Operator Illumination
Illuminated
Operating Temperature - Maximum
185 Degrees F
Terminal Connection Type
Screw Terminals
Includes Lamp Module
No Lamp Module Included
Number of Positions
2
Includes Lens
Lens Included

Description

Lighted Rocker Switch, Contact Form SPST, Number of Connections 3, Switch Function On/Off, Terminals Screw, Mounting Hole 0.625 in x 1.625 in, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, DC Contact Rating 15 A @ 15 to 28 V, HP 3/4 hp, Body Color Black, Switch Color Red, Standards CSA, UL Listed, IP Rating Not Applicable, Special Features 6-32 SCREW HOLES 1.62 in APART, Red Neon (On)
