  13. Toggle Switch, 3PDT, 9 Connections, On/On, 3/4 hp, 10A at 250V AC, 15A at 125V AC

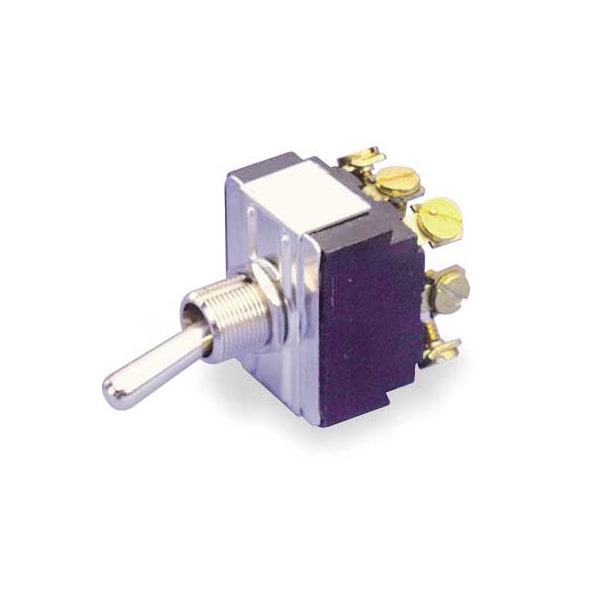

Carling Technologies Toggle Switch, 3PDT, 9 Connections, On/On, 3/4 hp, 10A at 250V AC, 15A at 125V AC HL254-73 - main

Toggle Switch, 3PDT, 9 Connections, On/On, 3/4 hp, 10A at 250V AC, 15A at 125V AC

  • Mfr # HL254-73

  • Zoro # G0382146

product price: $11.49
/ea

Key Features

Switch Function
On/On
Contact Form
3PDT
HP
3/4 hp
Actuator Style
Bat
Amps
10A @ 250VAC, 15A @ 125VAC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HL254-73
Zoro #
G0382146
UPC #
-
Country of Origin
Mexico

Dimensions

Stem Length
0.47 in
Actuator Length
0.68 in
Stem Dia. and Thread Size
15/32-32 UNS-2A x 0.5 in dia
Mounting Hole Diameter
0.5 in
Stem Thread Size
15/32-32 UNS-2A
Overall Height
1.79 in
Overall Width
1.08 in
Stem Diameter
0.5 in
Overall Depth
1.31 in

Details

Switch Function
On/On
Contact Form
3PDT
HP
3/4 hp
Actuator Style
Bat
Amps
10A @ 250VAC, 15A @ 125VAC
Number of Connections
9
Terminals
Screw
Mounting Hole
0.50 in dia
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Item
Toggle Switch
IP Rating
Not Rated
DC Contact Rating
Not Rated
Product Type
Toggle Switch
Series
H
Features
Not Sealed
Horsepower
3/4 hp
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
185 Degrees F
Switch Function Configuration
On/None/On
Operator Illumination Style
Non-Illuminated
Number of Positions
3
Number of Poles
3
Terminal Connection Type
Screw Terminals
Operating Temperature - Minimum
32 Degrees F
Actuator Material
Metal

Description

Toggle Switch, Contact Form 3PDT, Number of Connections 9, Switch Function On/On, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, HP 3/4 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating Not Rated, Actuator Style Bat, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 15/32-32 UNS-2A x 0.5 in dia
