Shop CARLING TECHNOLOGIES

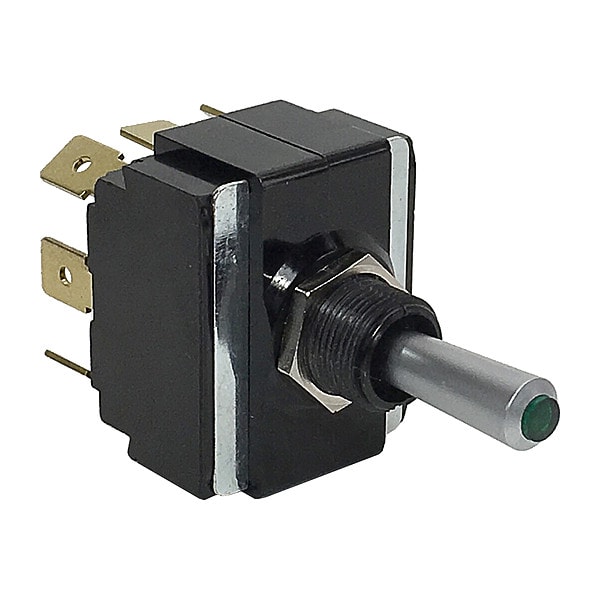

Toggle Switch, DPDT, 8 Connections, On/Off/On, 3/4 hp, 20A at 12V

  • Mfr # LT2561-603-012

  • Zoro # G4290982

product price:
$
12.29
/ea

Key Features

Switch Function
On/Off/On
Contact Form
DPDT
HP
3/4 hp
Actuator Style
Snapkap
Amps
10A @ 250VAC, 15A @ 125VAC, 15A @ 12 to 28VDC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LT2561-603-012
Zoro #
G4290982
UPC #
-
Country of Origin
Mexico
Switch Function
On/Off/On
Contact Form
DPDT
HP
3/4 hp
Actuator Style
Snapkap
Amps
10A @ 250VAC, 15A @ 125VAC, 15A @ 12 to 28VDC
Number of Connections
8
Terminals
Quick Connect
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Standards
CSA, UL Listed
Mounting Hole
0.50 in dia
Item
Toggle Switch
Special Features
Green, Lighted, Seal In Bushing
DC Contact Rating
15 A @ 12-28 V
Stem Color
Silver
IP Rating
Not Rated
Product Type
Toggle Switch
Series
LT
Operating Temperature - Maximum
185 Degrees F
Switch Function Configuration
On/Off/On
Horsepower
3/4 hp
NEMA Enclosure Rating
No Enclosure
Actuator Material
Metal
Operator Illumination Style
Illuminated Actuator
Number of Poles
2
Features
Green, Seal In Bushing
Operating Temperature - Minimum
32 Degrees F
Terminal Connection Type
1/4 in Quick Connect Tab
Number of Positions
3

Description

Toggle Switch, Contact Form DPDT, Number of Connections 8, Switch Function On/Off/On, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, HP 3/4 hp, Terminals Quick Connect, Mounting Hole 0.50 in dia, DC Contact Rating 15 A @ 12-28 V, Actuator Length 0.71 in, Stem Length 0.38 in, Stem Dia. and Thread Size 0.406 in, Stem Color Silver, Special Features Green, Lighted, Seal In Bushing, Standards CSA, UL Listed
