Shop CARLING TECHNOLOGIES

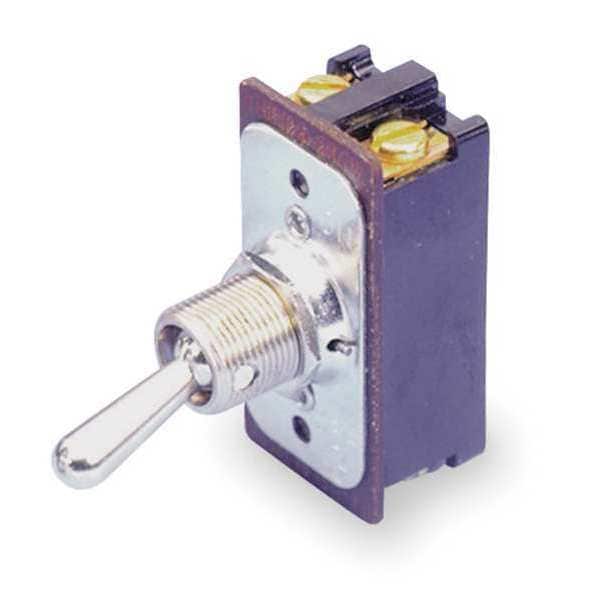

Toggle Switch, DPST, 4 Connections, On/Off, 1 hp, 16A at 125V AC, 8A at 250V AC

  • Mfr # DK284-73

  • Zoro # G0866083

product price:  $12.55
/ea

Key Features

Switch Function
On/Off
Contact Form
DPST
HP
1 hp
Actuator Style
Bat
Amps
8A @ 250V, 16A @ 125V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DK284-73
Zoro #
G0866083
UPC #
-
Country of Origin
Mexico

Dimensions

Stem Length
0.47 in
Actuator Length
0.68 in
Stem Dia. and Thread Size
15/32-32 UNS-2A x 0.5 in dia
Stem Diameter
0.5 in
Overall Width
0.83 in
Overall Height
1.91 in
Mounting Hole Diameter
0.5 in
Overall Depth
1.76 in
Stem Thread Size
6-32 NC-2

Details

Switch Function
On/Off
Contact Form
DPST
HP
1 hp
Actuator Style
Bat
Amps
8A @ 250V, 16A @ 125V
Number of Connections
4
Terminals
Screw
Mounting Hole
0.50 in dia
Item
Toggle Switch
AC Contact Rating
16 A @ 125 V, 8 A @ 250 V
Operating Temp. Range
0 Degrees to 150 Degrees F
IP Rating
Not Rated
DC Contact Rating
16 A @ 125 V, 8 A @ 250 V
Product Type
Toggle Switch
Series
DK/EK
Features
Not Sealed
Terminal Connection Type
Screw Terminals
Switch Function Configuration
On/Off
Operating Temperature - Minimum
0 Degrees F
Operator Illumination Style
Non-Illuminated
Actuator Material
Metal
Operating Temperature - Maximum
150 Degrees F
Number of Poles
2
Horsepower
1 hp
NEMA Enclosure Rating
No Enclosure
Number of Positions
2

Description

Toggle Switch, Contact Form DPST, Number of Connections 4, Switch Function On/Off, AC Contact Rating 16 A @ 125 V, 8 A @ 250 V, HP 1 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 16 A @ 125 V, 8 A @ 250 V, Actuator Style Bat, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 15/32-32 UNS-2A x 0.5 in dia, Operating Temp. Range 0 Degrees to 150 Degrees F
