  9. Comm Cable, Shielded, 22/3, 500 Ft.
Shop All Communication Cables
Carol

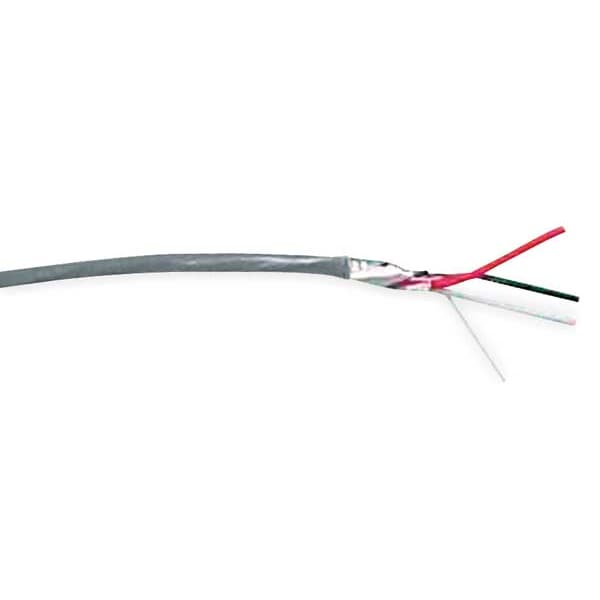

Comm Cable, Shielded, 22/3, 500 Ft.

product price: $207.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Commercial
  • Shielded Shielded
  • Number of Conductors 3
  • Total Number of Conductors - Data Cable 3 (0 Pair)
  • Length 500 ft.
See all product information

Product Information

Dimensions

Length 500 ft.
Conductor Size - Data Cable 22 AWG
Nominal Outside Dia. 0.196 in
Spool Length 500 ft
Conductor Size 22 AWG
Cable Length 500 ft
Outside Diameter 0.2 in

Details

Item - Data Cable Communication Cable
Item Communication Cable
Fire Rating - Data Cable Commercial
Shielded Shielded
Number of Conductors 3
Total Number of Conductors - Data Cable 3 (0 Pair)
Solid / Stranded Stranded
Jacket Color Gray
Application - Communication Cable Audio Systems, Broadcast Systems, Computer Systems, Control Systems
Jacket Material PVC
Suggested Voltage Rating - Data Cable 300 V
Package Type - Data Cable Spool
Cable Sub-Category Multi-Conductor
Temp. Range -4 Degrees to 167 Degrees F
Jacket Material - Wire and Cable PVC
NEC Article and Type 800 CM
Application Audio Systems, Computer Systems, Control Systems
NEC Article 800, CM
Shielded / Unshielded Shielded
Insulation Material PE
Standards CE 2006/95/EC, CSA CMH, UL 70,000 BTU Vertical Tray Flame Test, CSA CMH Flame Test, RoHS Compliant, UL Style 2092, UL Style 2093, UL Style 2094, UL Style 2106, UL Style 2107, UL Style 2464
Shielding Material 100% Aluminum/Polyester Flexfoil
Package Type Spool
Product Type Communication Cable
Number of Pairs 0
Maximum Operating Temperature 167 Degrees F
Minimum Operating Temperature -4 Degrees F
Fire Rating Commercial
Solid/Stranded Stranded
Conductor Gauge 22 AWG
Maximum Capacitance 33.5 pf/ft
Maximum Voltage Rating 300 V
Number of Strands 7

Description

Communication Cable, Cable Length 500 ft, Fire Rating Commercial, Number of Strands 7, Conductor Gauge 22 AWG, Insulation Material PE, Jacket Color Gray, Jacket Material PVC, Shielded Shielded, Shielding Material 100 Percent Aluminum/Polyester Flexfoil, Solid/Stranded Stranded, Number of Conductors 3, Outside Diameter 0.2 in, Package Type Spool, Application Audio Systems, Computer Systems, Control Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 0
