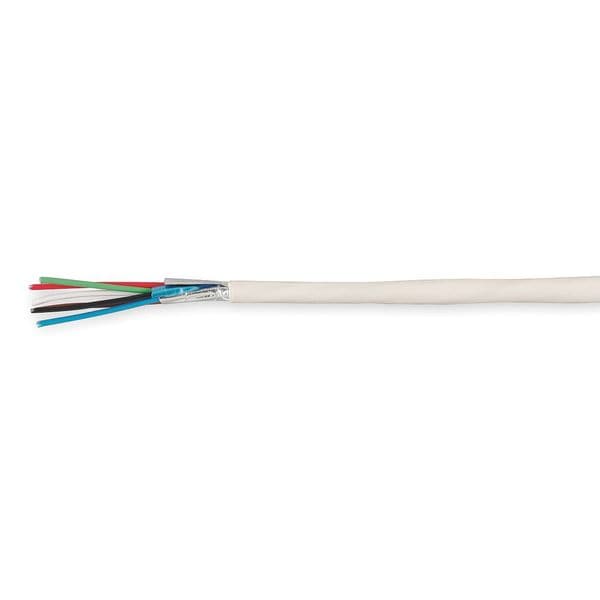

Comm Cable, Shielded, Plenum, 22/6, 1000 Ft

product price: $260.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Plenum
  • Number of Conductors 6
  • Shielded Shielded
  • Total Number of Conductors - Data Cable 6 (0 Pair)
  • Conductor Size - Data Cable 22 AWG
See all product information

Product Information

Dimensions

Conductor Size - Data Cable 22 AWG
Length 1000 ft.
Spool Length 1,000 ft
Nominal Outside Dia. 0.176 in
Conductor Size 22 AWG
Cable Length 1,000 ft
Outside Diameter 0.2 in

Details

Item Power Limited and Communication Cable
Item - Data Cable Communication Cable
Fire Rating - Data Cable Plenum
Number of Conductors 6
Shielded Shielded
Total Number of Conductors - Data Cable 6 (0 Pair)
Solid / Stranded Stranded
Jacket Color Natural
Application - Communication Cable Alarm Systems, Audio Systems, Control Systems
Jacket Material PVC
NEC Article 725 Type CL3R, 800 Type CMR
Cable Sub-Category Multi-Conductor
Shielded / Unshielded Shielded
Standards cULus
Application Audio Systems, Communications, Alarm Systems
Insulation Material PVC
Plenum / Riser Rated Plenum Rated
Temp. Range -4 Degrees to 167 Degrees F
NEC Article and Type 725 CL3P, 760 FPLP, 800 CMP
Jacket Material - Wire and Cable PVC
Shielding Material Flexfoil Polyester Supported Aluminum Foil
Package Type - Data Cable Pulling Pack
Package Type Pulling Pack
Product Type Communication Cable
Solid/Stranded Stranded
Conductor Gauge 22 AWG
Minimum Operating Temperature 32 Degrees F
Number of Pairs 0
Maximum Operating Temperature 167 Degrees F
Power Limited Power Limited
Number of Strands 7
Fire Rating Plenum
Maximum Voltage Rating 300 V

Description

Power Limited and Communication Cable, Cable Length 1,000 ft, Fire Rating Plenum, Number of Strands 7, Conductor Gauge 22 AWG, Insulation Material PVC, Jacket Color Natural, Jacket Material PVC, Shielded Shielded, Shielding Material Flexfoil Polyester Supported Aluminum Foil, Solid/Stranded Stranded, Number of Conductors 6, Outside Diameter 0.2 in, Package Type Pulling Pack, Application Audio Systems, Communications, Alarm Systems, Maximum Voltage Rating 300 V
