  9. Comm Cable, Unshielded, 18/5,500 Ft.
Shop All Communication Cables
Carol

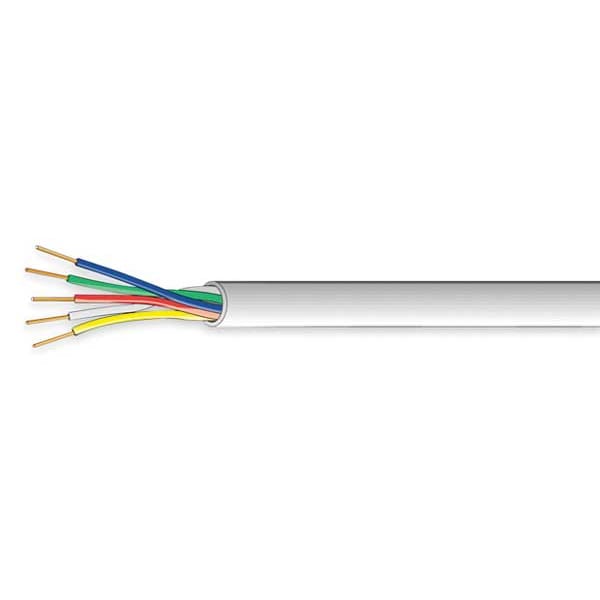

Comm Cable, Unshielded, 18/5,500 Ft.

product price: $371.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Commercial
  • Number of Conductors 5
  • Shielded Unshielded
  • Total Number of Conductors - Data Cable 5 (0 Pair)
  • Length 500 ft.
See all product information

Product Information

Dimensions

Length 500 ft.
Conductor Size - Data Cable 18 AWG
Nominal Outside Dia. 0.28 in
Spool Length 500 ft
Conductor Size 18 AWG
Cable Length 500 ft
Outside Diameter 0.3 in

Details

Item - Data Cable Communication Cable
Item Communication Cable
Fire Rating - Data Cable Commercial
Number of Conductors 5
Shielded Unshielded
Total Number of Conductors - Data Cable 5 (0 Pair)
Solid / Stranded Stranded
Jacket Color Gray
Application - Communication Cable Audio Systems, Computer Systems, Control Systems
Jacket Material PVC
Suggested Voltage Rating - Data Cable 300 V
Temp. Range -4 Degrees to 176 Degrees F
Application Audio Systems, Control Systems
Package Type - Data Cable Reel in a Box
Shielded / Unshielded Unshielded
NEC Article and Type 800 CM
NEC Article 800 Type CM
Insulation Material PVC
Jacket Material - Wire and Cable PVC
Cable Sub-Category Multi-Conductor
Standards CE 2006/95/EC, CSA CMG, UL 70,000 BTU Vertical Tray Flame Test, CSA CMG Flame Test, RoHS Compliant, UL Style 2464, UL Style 2576
Package Type Reel in a Box
Maximum Voltage Rating 300 V
Number of Strands 16
Number of Pairs 0
Fire Rating Commercial
Maximum Operating Temperature 176 Degrees F
Conductor Gauge 18 AWG
Maximum Capacitance 30.5 pf/ft
Minimum Operating Temperature -4 Degrees F
Solid/Stranded Stranded
Product Type Communication Cable

Description

Communication Cable, Cable Length 500 ft, Fire Rating Commercial, Number of Strands 16, Conductor Gauge 18 AWG, Insulation Material PVC, Jacket Color Gray, Jacket Material PVC, Shielded Unshielded, Shielding Material Not Applicable, Solid/Stranded Stranded, Number of Conductors 5, Outside Diameter 0.3 in, Package Type Reel in a Box, Application Audio Systems, Control Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 0, Product Type Communication Cable
