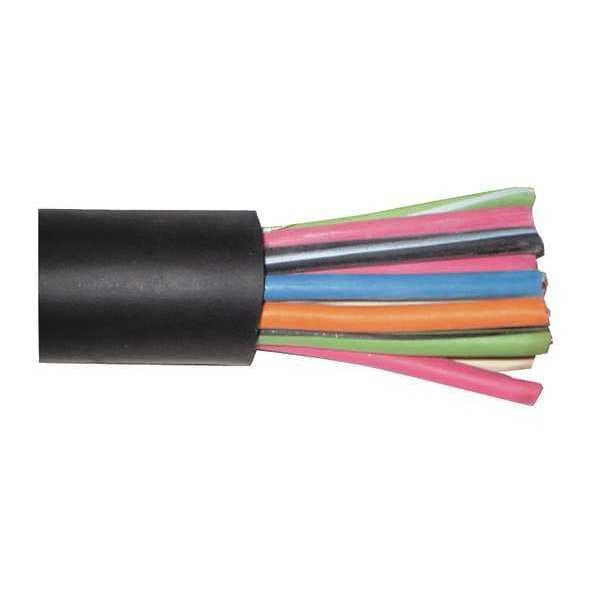

Carol Portable Cord, SOOW, 16 AWG, 14 C, Black, EPDM Rubber, Stranded, 600V, Indoor/Outdoor, 250 ft 09614.35.01 - main

Portable Cord, SOOW, 16 AWG, 14 C, Black, EPDM Rubber, Stranded, 600V, Indoor/Outdoor, 250 ft

  • Mfr # 09614.35.01

  • Zoro # G1557026

product price:  $2,276.99
/ea
Free Shipping & Returns

Key Features

Trade Designation
SOOW
Wire Size
16 AWG
Conductor Design
Stranded
Jacket Material
EPDM Rubber
Jacket Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
09614.35.01
Zoro #
G1557026
UPC #
094713353522
Country of Origin
Germany

Dimensions

Wire Size
16 AWG
Length
250 ft
Nominal Outside Dia.
0.73 in
Conductor Size
16 AWG
Outside Dia.
0.73 in
Overall Length
250 ft
Nominal Outside Diameter
0.73 in

Details

Item
Portable Cord
Trade Designation
SOOW
Number of Conductors
14
Conductor Design
Stranded
Jacket Material
EPDM Rubber
Jacket Color
Black
Location
Indoor/Outdoor
Voltage
600V
Conductor Material
Copper
Standards
CSA Flexible Cord, MSHA Approved, RoHS Compliant, UL Flexible Cord
Features
Extra Flexible Stranding, Abrasion Resistant, Resist Oils and Solvents, Water, Flame and Ozone Resistant
Wire Color
Black, Black/White, Blue, Blue/Black, Green, Green/Black, Green/White, Orange, Orange/Black, Red, Red/Black, Red/White, White, White/Black
Max. Amps
5
Temp. Rating
-40 to 194°F
Special Features
Abrasion Resistant, Ozone Resistant, Flame Resistant, Oil Resistant, Solvent Resistant, Water Resistant
Gauge/Conductor
16/14
Temperature Rating - Maximum Wet
194 Degrees F
Ampacity at Maximum Temperature
5 A
Packaging
Reel
Temperature Rating - Maximum Dry
194 Degrees F
Grounding Conductor Insulation Material
EPDM
Number of Ground Conductors
0
Operating Temperature - Minimum
-40 Degrees F
Number of Strands
26
Conductor Insulation Material
EPDM
Conductor Insulation Color
Black, Black/White, Blue, Blue/Black, Green, Green/Black, Green/White, Orange, Orange/Black, Red, Red/Black, Red/White, White, White/Black

Description

Portable Cord, Number of Conductors 14, Wire Size 16 AWG, Trade Designation SOOW, Jacket Material EPDM, Wire Color Black, Black/White, Blue, Blue/Black, Green, Green/Black, Green/White, Orange, Orange/Black, Red, Red/Black, Red/White, White, White/Black, Jacket Color Black, Length 250 ft, Voltage 600 V, Nominal Outside Dia. 0.73 in
