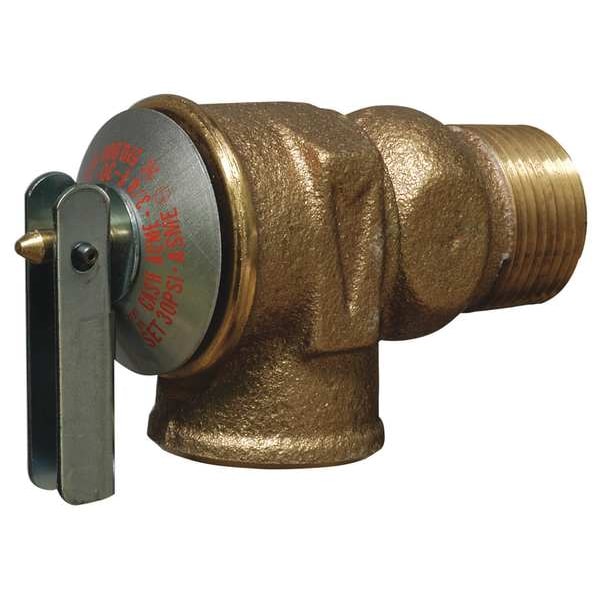

Safety Relief Valve, 3/4 In, 30 psi, Brass

CASH ACME| Zoro #: G1880855| Mfr #: F-30

$13.66 /ea

Orders over $50.00 ship free. DetailsStandard ground shipping
Details:
Factory Set Pressure: 30 psi
Outlet Type: MNPT
Spring Material: Stainless Steel

Technical Specifications

Zoro #: G1880855 Mfr #: F-30
Factory Set Pressure: 30 psiOutlet Type: MNPT
Spring Material: Stainless SteelOverall Length: 4-3/4"
Inlet Size: 3/4"Test Lever: Yes
BtuH: 510,000Disc Material: Silicone
Seat Material: SiliconeInlet Type: FNPT
Overall Height: 1-1/2"Standards: ASME Section 1V
Outlet Size: 3/4"Application: Hot Water Space Heating Boilers, Water Supply Heaters and Storage Tanks.
Body Material: BrassTemp. Range: 0 Degrees to 250 Degrees F
Compliance: ASME Section IVItem: Safety Relief Valve
Country of Origin (subject to change): United States

Product Description

Safety Relief Valve, Body Material Brass, Inlet Type FNPT, Outlet Type MNPT, Inlet Size 3/4 In., Outlet Size 3/4 In., Factory Set Pressure 30 psi, 510,000 BtuH, Disc Material Silicone, Overall Height 1-1/2 In., Application Hot Water Space Heating Boilers, Water Supply Heaters and Storage Tanks., Overall Length 4-3/4 In., Seat Material Silicone, Spring Material Stainless Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Yes, Compliance ASME Section IV, Standards ASME Section 1V

Restrictions and Compliance

This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
***
This is a restricted item. It cannot be used in the USA for potable water applications.
