  5. Digital Sanitary Compound Gauge with Transmitter, -15 to 0 to 100 psig/psig, 1-1/2" Triclamp, Gray

This item is Discontinued.

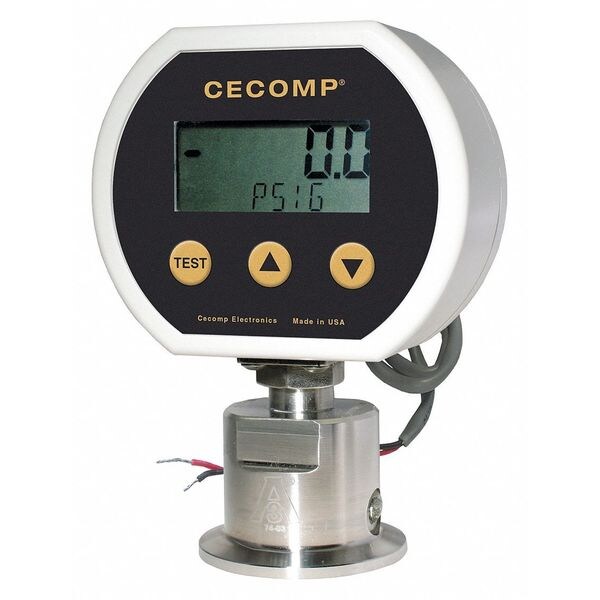

Cecomp Digital Sanitary Compound Gauge with Transmitter, -15 to 0 to 100 psig/psig, 1-1/2" Triclamp, Gray DSGL315N-15V100PSIG-NC

Digital Sanitary Compound Gauge with Transmitter, -15 to 0 to 100 psig/psig, 1-1/2" Triclamp, Gray (Discontinued)

  • Mfr # DSGL315N-15V100PSIG-NC
  • Zoro # G2605359
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DSGL315N-15V100PSIG-NC
Zoro #
G2605359
UPC #
-
Country of Origin
United States

Dimensions

Gauge Connection Size
1 1/2 in
Gauge Nominal Dial Size
3 in
Manufacturers Warranty Length
1 yr

Details

Item
Digital Sanitary Compound Gauge with Transmitter
Includes
Instructions and Connection Diagram
Range
-15 psig Vac to 100 psig
Output
4 to 20mA
Accuracy
+/-0.25% of Reading
Gauge Primary Range Values
-15 to 0 to 100
Gauge Primary Range Units
psig/psig
Gauge Connection Type
Triclamp
Basic Gauge Case Material
Plastic
Case Color
Gray
Digital Gauge Accuracy
+/-0.25%
Case Material
ABS Polycarbonate
Calibration Certificate
yes
Gauge Connection Location
Bottom
Number of Display Digits
4
Basic Gauge Wetted Parts
Stainless Steel
Resolution
0.100 psi
Agency Compliance
3A
Digital Gauge Display Units
psi
Display
LCD
Series
DSGL3
Digital Gauge with Transmitter Type
Digital Sanitary Compound Gauge with Transmitter
Gauge Transmitter Required Power
8 to 32V DC
Socket Material
316L Stainless Steel
Features
Seal NEOBEE M20 Fill, Password Protection for Calibration, 4 to 20mA Output, Loop Powered
Gauge Operating Temp. Range
-4 Degrees to 185 Degrees F
Display Units
Psi
Powered By
8 to 32V DC

Description

Digital Sanitary Compound Gauge with Transmitter, Accuracy +/-0.25 Percent of Reading, Display Units Psi, Output 4 to 20mA, Series DSGL3, Gauge Primary Range Units psig/psig, Case Color Gray, Features Seal NEOBEE M20 Fill, Password Protection for Calibration, 4 to 20mA Output, Loop Powered
