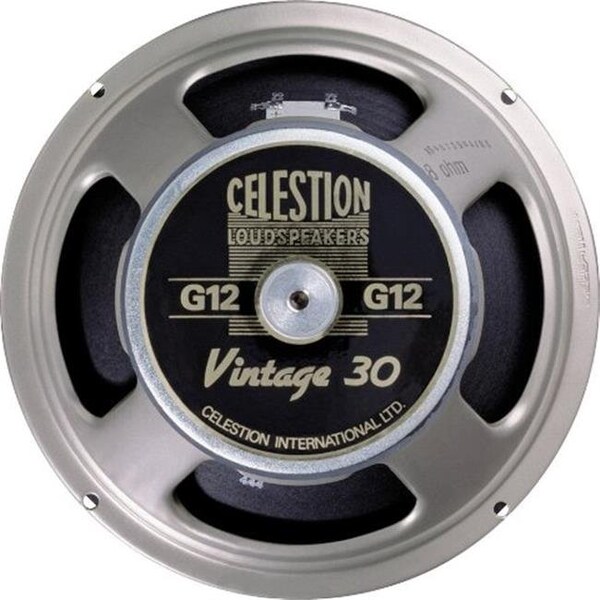

Celestion America VINTAGE30-16OHM Vintage 30 Guitar Speaker; 16 Ohm

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly 'hot-rodded' amplifiers, we set out to develop a modern speaker, capable of handling much more power and overdrive. To achieve this, we coupled our 'H' magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

Our most revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton.

• Nominal diameter - 12 in., 305 mm.
• Power rating 60 Wrms.
• Nominal impedance - 16O.
• Sensitivity - 100dB.
• Chassis Type - Pressed steel.
• Voice coil diameter - 1.75 in., 44.5 mm.
• Voice coil material - Round copper.
• Magnet type - Ceramic.
• Magnet weight - 50oz, 1.42kg.
Frequency range - 70-5000 Hz.
• Resonance frequency - 75 Hz.
• DC resistance, Re - Available 7.3O or 12.9O.
