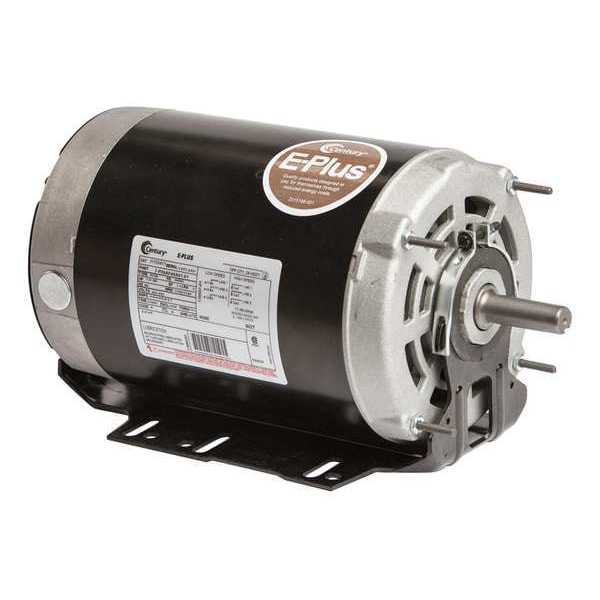

3-Phase Belt Drive Motor, 1 1/2, 11/16 HP, 56H Frame, 200-230V AC Voltage, No. of Speeds: 2 (Discontinued)
- Mfr # H1034V1
- Zoro # G0824083
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
H1034V1
Zoro #
G0824083
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Body Dia.
6 1/2 in
Shaft Length
1 15/16 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
10 3/4 in
Overall Length
12 11/16 in
Description
Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1 1/2, 11/16 HP, Nameplate RPM 1,745/1,140, No. of Speeds 2, Voltage 200-230V AC, 4.8-4.6/2.8-2.7 A Full Load Amps, 56H Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
