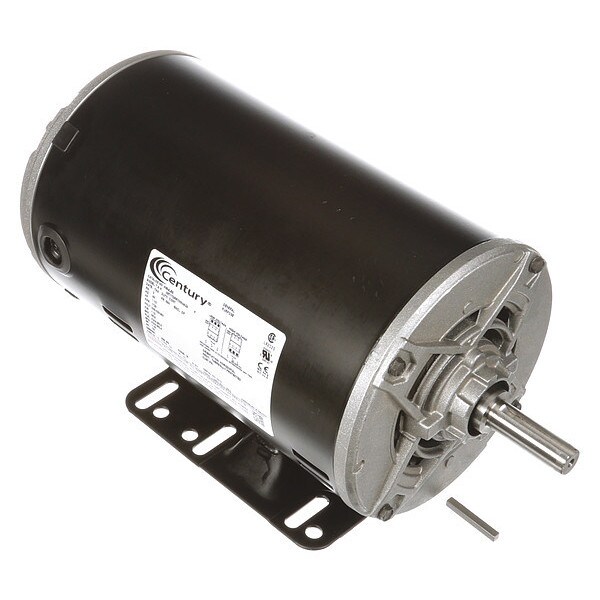

3-Phase Belt Drive Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM (Discontinued)
- Mfr # H884LES
- Zoro # G2121618
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
H884LES
Zoro #
G2121618
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Body Dia.
6 7/16 in
Overall Length
14 in
Length Less Shaft
12 1/8 in
Description
Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, 4.4-4.4/2.2 A Full Load Amps, 56H Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
