This item is Discontinued.

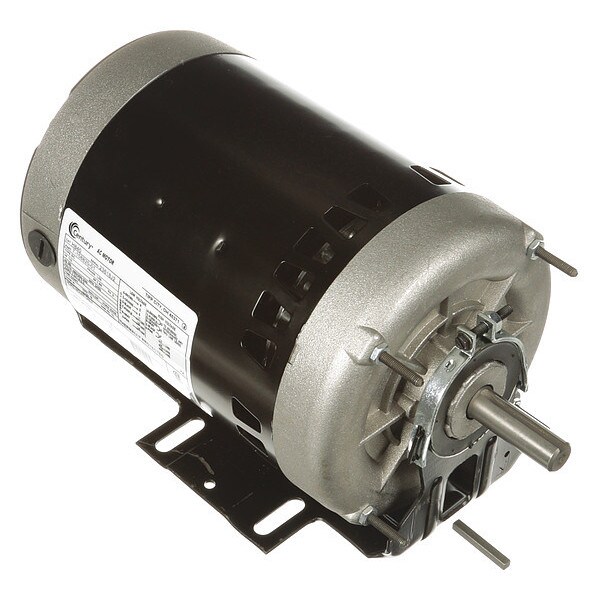

Century 3-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 200-230/460V AC Voltage, 3,450 Nameplate RPM H840

3-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 200-230/460V AC Voltage, 3,450 Nameplate RPM (Discontinued)

  • Mfr # H840
  • Zoro # G2243832
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
H840
Zoro #
G2243832
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Length Less Shaft
10 1/4 in
Body Dia.
6 1/2 in
Resilient Ring Dia.
2 1/2 in
Overall Length
12 3/16 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Voltage
200-230/460V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.6
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Nominal Efficiency
72 %
Duty
Continuous
Frame Material
Rolled steel
Full Load Amps
1.0/1.9-2.0 A
Motor Mounting Position
All Angle
Footnotes
35, 82
Motor Shaft Rotation
CW/CCW
Ring to Ring Center
9 7/8 in
Ins. Class
B
Motor Frame Material
Steel
Max. Ambient Temp.
104 Degrees F
Hz
60 Hz
Motor Bearings
Ball
Standards
CSA, UL Recognized
Weight
21 lb
Duty Cycle
Continuous
Usable @ 208V
Yes
Usable @ 200V
Yes

Description

Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 200-230/460V AC, 1.0/1.9-2.0 A Full Load Amps, 56 Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz Hz, Motor Service Factor 1.6, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
