  6. 3-Phase Belt Drive Motor, 2 HP, 56H Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM

This item is Discontinued.

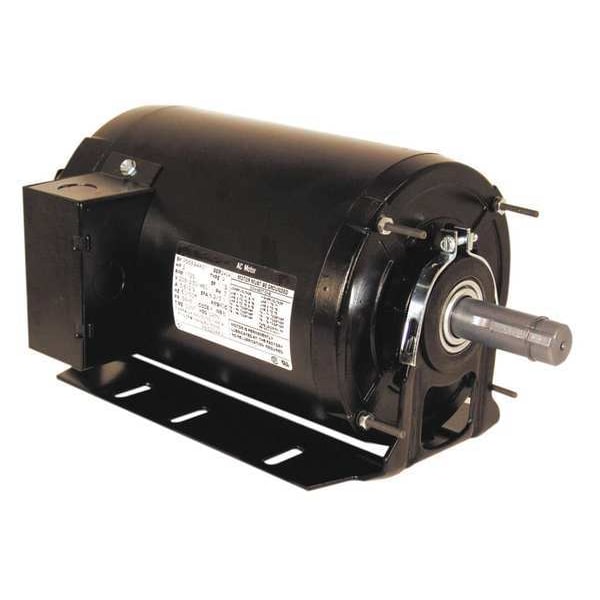

Century 3-Phase Belt Drive Motor, 2 HP, 56H Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM RB3204A

3-Phase Belt Drive Motor, 2 HP, 56H Frame, 208-230/460V AC Voltage, 1,725 Nameplate RPM (Discontinued)

  • Mfr # RB3204A
  • Zoro # G1844157
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RB3204A
Zoro #
G1844157
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
5 5/8 in
Shaft Length
2 in
Overall Length
12 13/16 in
Length Less Shaft
10 13/16 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
2
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
208-230/460V AC
Frame
56H
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Footnotes
24
Motor Frame Material
Steel
Duty
Continuous
Nominal Efficiency
79 %
Standards
CSA
Motor Mounting Position
All Angle
Frame Material
Rolled steel
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Full Load Amps
5.8/2.9 A
Max. Ambient Temp.
104 Degrees F
Hz
60/50 Hz
Weight
38 lb
RPM @ 50Hz
1,725
HP @ 50Hz
2
Usable @ 208V
Yes
Usable @ 200V
No
Service Factor @ 50Hz
1.15
Full Load Amps @ 50Hz
5.8/2.9 A
Duty Cycle
Continuous
Voltage @ 50Hz
208-230/460V AC

Description

Belt Drive Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, 5.8/2.9 A Full Load Amps, 56H Frame, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
