This item is Discontinued.

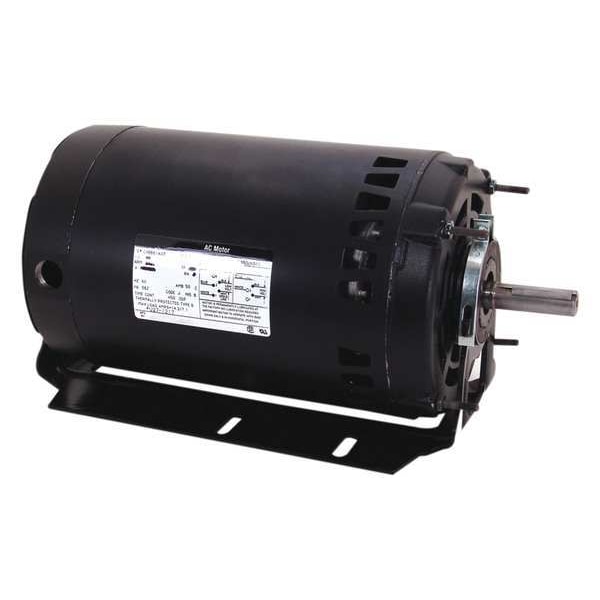

Century 3-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 200-230/460V AC Voltage, 3,450 Nameplate RPM H841V1

3-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 200-230/460V AC Voltage, 3,450 Nameplate RPM (Discontinued)

  • Mfr # H841V1
  • Zoro # G1608126
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H841V1
Zoro #
G1608126
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 11/16 in
Shaft Length
1 15/16 in
Length Less Shaft
10 3/4 in
Body Dia.
6 1/2 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
No. of Speeds
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Voltage
200-230/460V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.5
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Frame Material
Steel
Nominal Efficiency
71.3 %
Hz
60 Hz
Motor Mounting Position
All Angle
Frame Material
Rolled steel
Full Load Amps
1.4/2.8-2.8 A
Duty
Continuous
Motor Bearings
Ball
Footnotes
26, 35, 82
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Standards
CSA, UL Recognized
Max. Ambient Temp.
104 Degrees F
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Usable @ 200V
Yes
Usable @ 208V
Yes
Weight
24 lb
Duty Cycle
Continuous

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 1.4/2.8-2.8 A Full Load Amps, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz Hz, Motor Service Factor 1.5, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
