  11. Air Compr Mtr, 5 HP, 3450 rpm, 208-230V, 56Y
This item is Discontinued.

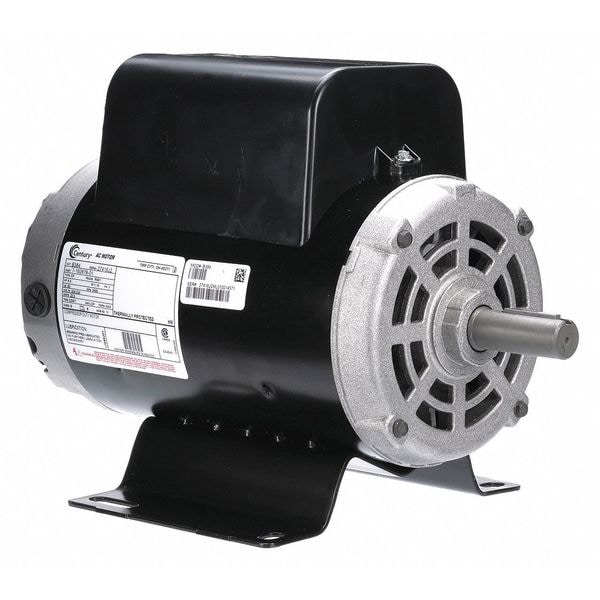

Century Air Compr Mtr, 5 HP, 3450 rpm, 208-230V, 56Y B384

Air Compr Mtr, 5 HP, 3450 rpm, 208-230V, 56Y (Discontinued)

  • Mfr # B384
  • Zoro # G3409445
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B384
Zoro #
G3409445
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Overall Length
14 9/16 in
Length Less Shaft
12 1/4 in

Details

Item
Air Compressor Motor
Motor Design
Capacitor-Start/Run
HP
5
RPM Range
3,001-3,600
Voltage
208-230V AC
Frame
R56Y
Motor Thermal Protection
Manual
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Rigid Base
Motor Bearings
Ball
Duty
Continuous
Motor Application
Air Compressor
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
3,450
Phase
Single
Full Load Amps
22.0 A
Standards
CSA, UL Listed
Motor Shaft Design
Keyed
Motor Service Factor
1.15
Ins. Class
B
Hz
60 Hz
Capacitor Included
Yes
Motor Shaft Rotation
CCWSE
Voltage Compatibility
115/208-230V AC, 208-230V AC, 208-240V AC
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Weight
50 lb
No. of Speeds
1
Motor Frame Material
Steel
Includes
Capacitor

Description

Air Compressor Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 22.0 A, R56Y Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 7/8 in, Shaft Length 2 1/4 in, Motor Shaft Design Keyed
