Century

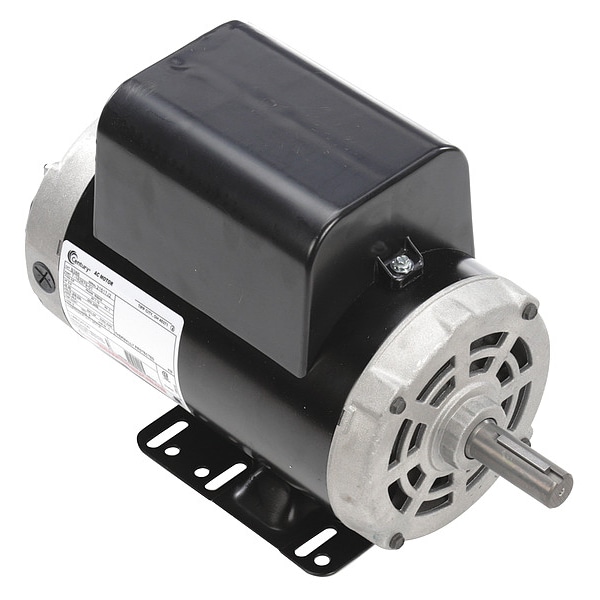

Air Compressor Motor

product price: $511.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Features Heavy-Duty Construction Ensures Motor Durability, High Starting Torque on Start-Up, to Achieve a Higher Starting Load Required in Air Compressor Applications
  • Application Air Compressor
  • Hz 60 Hz
  • Nameplate RPM 3,450
  • Ins. Class B
See all product information

Product Information

Dimensions

Overall Length 14 9/16 in
Shaft Length 2 5/16 in
Shaft Dia. 7/8 in
Length Less Shaft 12 1/4 in
Manufacturers Warranty Length 1 yr

Details

Item Air Compressor Motor
Features Heavy-Duty Construction Ensures Motor Durability, High Starting Torque on Start-Up, to Achieve a Higher Starting Load Required in Air Compressor Applications
Application Air Compressor
Hz 60 Hz
Nameplate RPM 3,450
Ins. Class B
HP 5
Full Load Amps 22.0 A
Motor Mounting Type Rigid Base
No. of Speeds 1
Motor Shaft Design Keyed
Motor Service Factor 1.15
Duty Continuous
Motor Shaft Rotation CW
Max. Ambient Temp. 104 Degrees F
Frame 56HZ
Motor Design Capacitor-Start
Phase Single
Motor Bearings Ball
Motor Application Air Compressor
Standards CSA, UL Listed
Voltage 208-230V AC
Motor Thermal Protection Manual
Voltage Compatibility 208-230V AC
RPM Range 3,401-3,500
Motor Enclosure Design Open Dripproof
Weight 47 lb
Motor Frame Material Rolled Steel
Usable @ 200V No
Usable @ 208V Yes
Duty Cycle Continuous
Motor Mounting Position Horizontal
Motor Sub Application General Puspose

Description

Air Compressor Motor, Single Phase, Motor Design Capacitor-Start, 5 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 22.0 A, 56HZ Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel, Shaft Dia. 7/8 in
