  11. Air Gearmotor, 1.25 HP, 60 cfm, 200 rpm
Shop All Air Motors
Speedaire

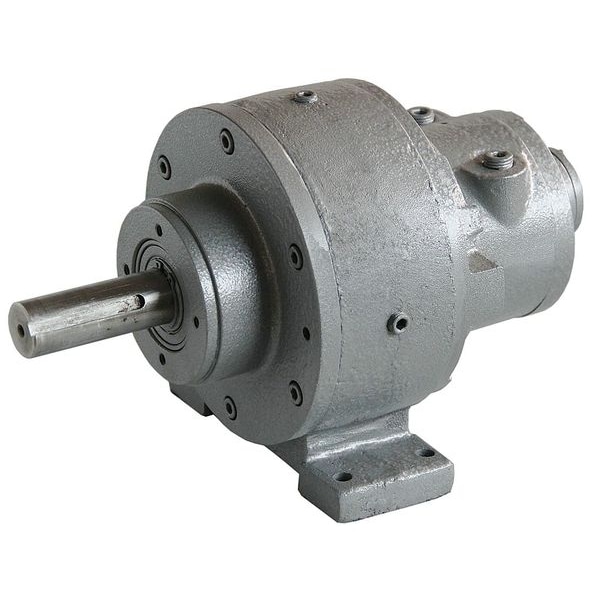

Air Gearmotor, 1.25 HP, 60 cfm, 200 rpm

original price: $553.82
8% off
new price: $507.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 400 in-lb
  • HP 1.25 hp
  • Max. Air Flow 60 cfm
  • No Load RPM 200 RPM
  • Shaft Dia. 1 in
See all product information

Product Information

Dimensions

Shaft Dia. 1 in
Port Size 1/4 in NPT
Overall Length 11 11/16 in
Shaft Length 2 3/4 in
Overall Height 6 5/8 in
Overall Width 6 1/8 in
Length Less Shaft 8 15/16 in
Outside Diameter 6 in
Keyway Width 1/4 in
Shaft Diameter 1 in
Manufacturers Warranty Length 1 yr
Keyway Length 2 1/4 in
Keyway Depth 1/8 in
Inlet Size 1/4 in

Details

Item Air Gearmotor
Running Torque @ Max. Pressure 400 in-lb
HP 1.25 hp
Max. Air Flow 60 cfm
No Load RPM 200 RPM
Mounting Face and Foot
Rotation CW/CCW
Housing Material Cast Iron
Finish Gray
Gear Ratio 15:1
RPM @ Max. Torque 20 RPM
Operating Temp. Range 0 Degrees to 250 Degrees F
Max. Air Pressure 80 psi
Includes Muffler
Mount Type Face, Foot
Weight 30.87 lb
Maximum Ambient Temperature 250 Degrees F
Output Power @ Maximum Speed 1.25 hp
Air Consumption 60 cfm
Gear Material Grade 42CrMo
Maximum Operating Pressure 80 psi
Shaft Orientation Parallel
Housing Material Grade 42CrMo
Nameplate Speed 30 RPM
Inlet Gender Female
Gear Material Steel
Maximum Flow Rate 60 cfm
Minimum Operating Pressure 20 psi
Shaft Material Grade 42CrMo
Seal Material Nitrile Rubber
Air Inlet Type NPT
Speed @ Maximum Torque 20 RPM
Keyway Type Flat Key
Motor Frame Material Cast Iron
Number of Output Shafts 1
Mounting Orientation Any Angle
Air Inlet Center to Center Distance 2 1/2 in
Starting Torque 33.34 ft-lb
Maximum Torque 400 in-lb
Minimum Ambient Temperature 0 Degrees F
Minimum Flow Rate 4.22 cfm
Housing Material Finish Painted
No Load Speed 200 RPM
Shaft Material Steel
System of Measurement Inch
Number of Vanes 4

Description

Air Gearmotor, Output Power @ Maximum Speed 1.25 hp, Maximum Torque 400 in-lb, No Load Speed 200 RPM, Maximum Flow Rate 60 cfm, Shaft Diameter 1 in, Shaft Length 2 3/4 in, Mount Type Face, Foot, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Gear Ratio 15:1, Air Consumption 60 cfm, Housing Material Finish Painted, AGMA Gear Class Not Applicable, Air Inlet Center to Center Distance 2 1/2 in, Inlet Gender Female
