  6. Capacitor-Start Belt Drive Motor, 1, 1/3 HP, 56 Frame, 208-230V AC Voltage, No. of Speeds: 2

This item is Discontinued.

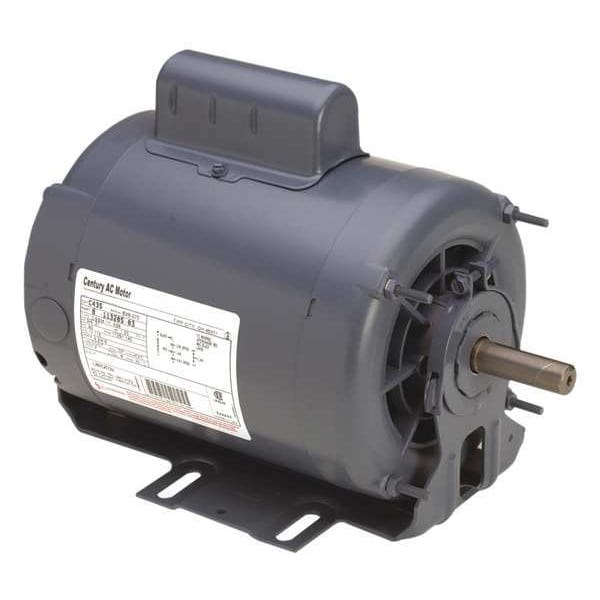

Century Capacitor-Start Belt Drive Motor, 1, 1/3 HP, 56 Frame, 208-230V AC Voltage, No. of Speeds: 2 C472A

Capacitor-Start Belt Drive Motor, 1, 1/3 HP, 56 Frame, 208-230V AC Voltage, No. of Speeds: 2 (Discontinued)

  • Mfr # C472A
  • Zoro # G1597041
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C472A
Zoro #
G1597041
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
10 3/4 in
Overall Length
12 11/16 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
1 15/16 in
Body Dia.
6 1/2 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1, 1/3
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,160
Voltage
208-230V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.15
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Motor Bearings
Ball
Standards
CSA, UL Recognized
Footnotes
26
Nominal Efficiency
70 %
Frame Material
Rolled steel
Ins. Class
B
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Mounting Position
All Angle
Full Load Amps
6.4-6.0/3.4-3.5 A
Duty
Continuous
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Ring to Ring Center
10 5/16 in
Usable @ 208V
Yes
Duty Cycle
Continuous
Weight
31 lb
Usable @ 200V
No

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1, 1/3 HP, Nameplate RPM 1,725/1,160, No. of Speeds 2, Voltage 208-230V AC, 6.4-6.0/3.4-3.5 A Full Load Amps, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
