  6. Capacitor-Start Belt Drive Motor, 1 HP, 56 Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM

This item is Discontinued.

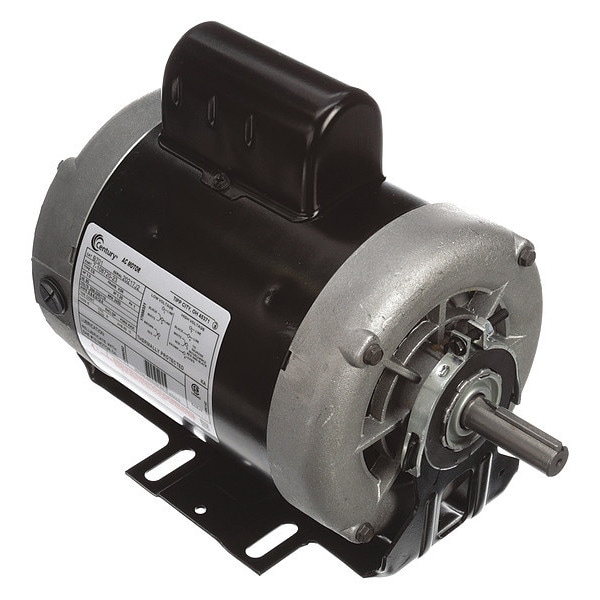

Century Capacitor-Start Belt Drive Motor, 1 HP, 56 Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM B701

Capacitor-Start Belt Drive Motor, 1 HP, 56 Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM (Discontinued)

  • Mfr # B701
  • Zoro # G1288551
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
B701
Zoro #
G1288551
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
11 7/16 in
Length Less Shaft
9 1/2 in
Shaft Length
1 15/16 in
Body Dia.
6 1/2 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1
No. of Speeds
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Voltage
115/208-230V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Duty
Continuous
Hz
60 Hz
Frame Material
Rolled steel
Motor Bearings
Sleeve
Motor Frame Material
Steel
Full Load Amps
6.6-6.0/12.0 A
Max. Ambient Temp.
104 Degrees F
Standards
CSA, UL Recognized
Nominal Efficiency
71 %
Motor Mounting Position
All Angle
Ins. Class
A
Motor Shaft Rotation
CW/CCW
Duty Cycle
Continuous
Usable @ 208V
Yes
Usable @ 200V
No
Weight
28 lb

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, 6.6-6.0/12.0 A Full Load Amps, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
