  6. Capacitor-Start Belt Drive Motor, 1/2 HP, 48Y Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM

This item is Discontinued.

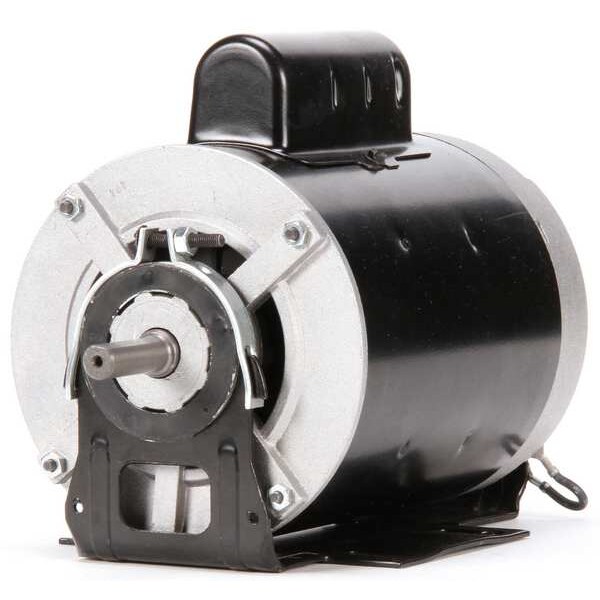

Century Capacitor-Start Belt Drive Motor, 1/2 HP, 48Y Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM B590

Capacitor-Start Belt Drive Motor, 1/2 HP, 48Y Frame, 115/208-230V AC Voltage, 3,450 Nameplate RPM (Discontinued)

  • Mfr # B590
  • Zoro # G1976712
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B590
Zoro #
G1976712
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 9/16 in
Length Less Shaft
8 3/8 in
Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/2 in
Overall Length
9 15/16 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
3,001-3,600
Nameplate RPM
3,450
Voltage
115/208-230V AC
Frame
48Y
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Bearings
Ball
Max. Ambient Temp.
104 Degrees F
Includes
5/8" dia. Shaft Bushing
Ring to Ring Center
7 15/16 in
Footnotes
275
Standards
CSA, UL Recognized
Hz
60 Hz
Nominal Efficiency
61 %
Motor Frame Material
Steel
Full Load Amps
8.0/3.8-4.0 A
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
All Angle
Duty
Continuous
Ins. Class
B
Frame Material
Rolled steel
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Usable @ 208V
Yes
Weight
20 lb
Usable @ 200V
No
Duty Cycle
Continuous
Includes Shaft Bushing
Yes

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, 8.0/3.8-4.0 A Full Load Amps, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
