  11. Condenser Fan Motor, 1 HP, 1075 rpm, 60 Hz
This item is Discontinued.

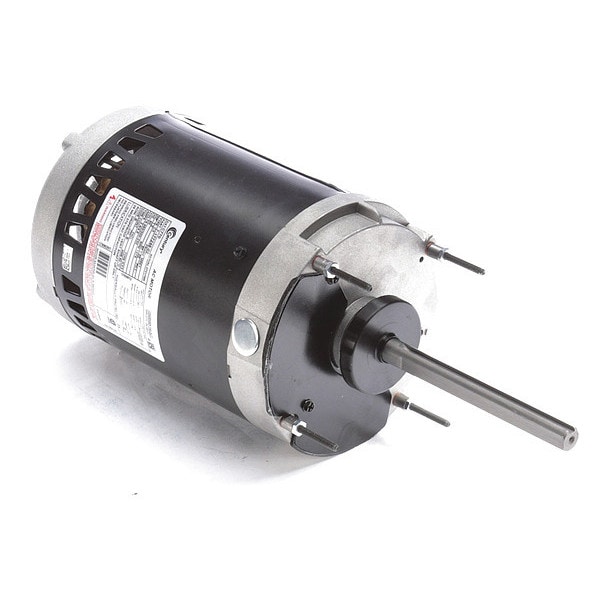

Century Condenser Fan Motor, 1 HP, 1075 rpm, 60 Hz C770

Condenser Fan Motor, 1 HP, 1075 rpm, 60 Hz (Discontinued)

  • Mfr # C770
  • Zoro # G3494662
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C770
Zoro #
G3494662
UPC #
-
Country of Origin
Mexico

Dimensions

Stud Size
#10-32
Length Less Shaft
10 13/16 in
Overall Length
16 13/16 in
Shaft Length
6 in
Body Dia.
6 1/2 in
Shaft Dia.
5/8 in
Mounting Stud Length
1 in
Bolt Circle Dia.
5 13/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Item
Condenser Fan Motor
Max. Ambient Temp.
60 Degrees C
Motor Service Factor
1
Ins. Class
B
Motor Bearings
Ball
Nameplate RPM
1,075
Duty
Continuous
Motor Sub Application
Condenser Fan
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Full Load Amps
2.4/4.8 A
Motor Shaft Design
Keyed
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Mounting Position
Vertical Shaft Up
Capacitor Required
Yes
Stud Quantity
4
Output Watts
750 W
Usable @ 200V
Yes
Weight
35 lb
Duty Cycle
Continuous
Motor Frame Material
Steel
Usable @ 208V
Yes
Features
Internal Conduit Box for Enclosed Wiring Connection

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 200-230/460V AC, 2.4/4.8 A Full Load Amps, 56Y Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
