This item is Discontinued.

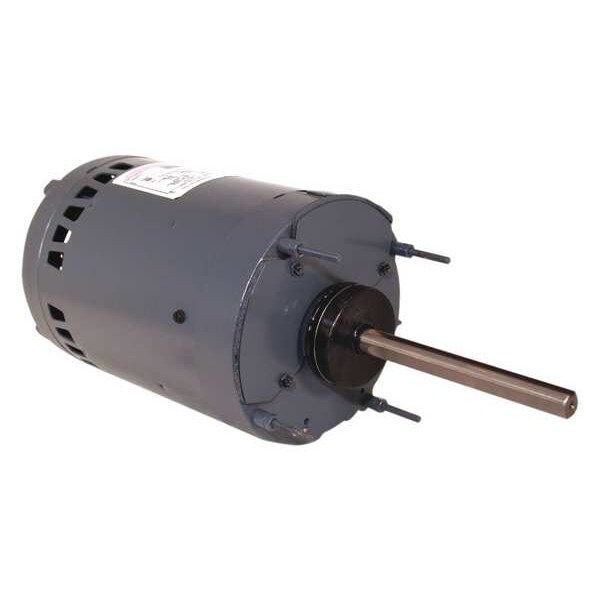

Century Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz C513V1

Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz (Discontinued)

  • Mfr # C513V1
  • Zoro # G1292733
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C513V1
Zoro #
G1292733
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
6 1/2 in
Shaft Length
6 in
Overall Length
16 5/16 in
Length Less Shaft
10 5/16 in
Stud Size
#10-32
Resilient Ring Dia.
2 1/2 in
Shaft Dia.
5/8 in
Mounting Stud Length
1 in
Bolt Circle Dia.
5 13/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Ins. Class
B
Motor Bearings
Ball
Capacitor Required
2MDV7
Max. Ambient Temp.
60 Degrees C
Motor Service Factor
1
Motor Shaft Design
Keyed
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Hz
60 Hz
Features
Internal Conduit Box for Enclosed Wiring Connection
Nominal Efficiency
76 %
Item
Condenser Fan Motor
Motor Mounting Position
Vertical Shaft Up
Stud Quantity
4
Full Load Amps
1.25/2.6-2.5 A
Duty
Continuous
Nameplate RPM
1,075
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Standards
CSA Certified, UL Recognized
Ring to Ring Center
9 13/16 in
Motor Sub Application
Condenser Fan
Usable @ 200V
Yes
Weight
30 lb
Motor Frame Material
Steel
Usable @ 208V
Yes
Conduit Box Location
Interior
Output Watts
370 W
Duty Cycle
Continuous

Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/2 HP, No. of Speeds 1, Voltage 200-230/460V AC, Motor Shaft Rotation CW/CCW, 56Y Frame, Motor Enclosure Design Open Air-Over, Cradle Base Motor Mounting Type, Motor Mounting Position Vertical Shaft Up, Shaft Dia. 5/8 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 1.25/2.6-2.5 A, Ins. Class B, Motor Service Factor 1
