  6. Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz

This item is Discontinued.

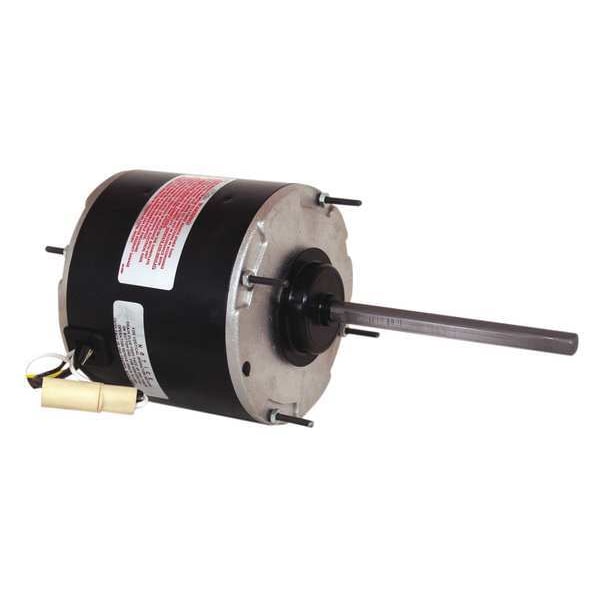

Century Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz FSE1056SV1

Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz (Discontinued)

  • Mfr # FSE1056SV1
  • Zoro # G3090701
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FSE1056SV1
Zoro #
G3090701
UPC #
-
Country of Origin
India

Dimensions

Lead Length
36 in
Length Less Shaft
6 1/16 in
Shaft Length
6 7/16 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Body Dia.
5 5/8 in
Overall Length
12 7/16 in
Bolt Circle Dia.
5 3/16 in
Mounting Stud Length
11/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Duty
Continuous
Max. Ambient Temp.
60 Degrees C
Full Load Amps
4.0 A
Motor Service Factor
1
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Ins. Class
B
Item
Condenser Fan Motor
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Double-Flat
Motor Thermal Protection
Auto
Features
Extended Studs Shaft and Lead End, Thermally Protected
Motor Bearings
Sleeve
Capacitor Required
2MDV7
Motor Mounting Position
All Angle
Stud Quantity
4
Motor Sub Application
Condenser Fan
Hz
60 Hz
Nameplate RPM
1,075
Motor Application
HVAC/R
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Duty Cycle
Continuous
Usable @ 200V
No
Output Watts
370 W
Replacement For
Mfr. No. D7907, 3730, EM3730
Weight
18 lb
Motor Frame Material
Steel
Usable @ 208V
Yes

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, 4.0 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Replacement For Mfr. No. D7907, 3730, EM3730, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
