Century

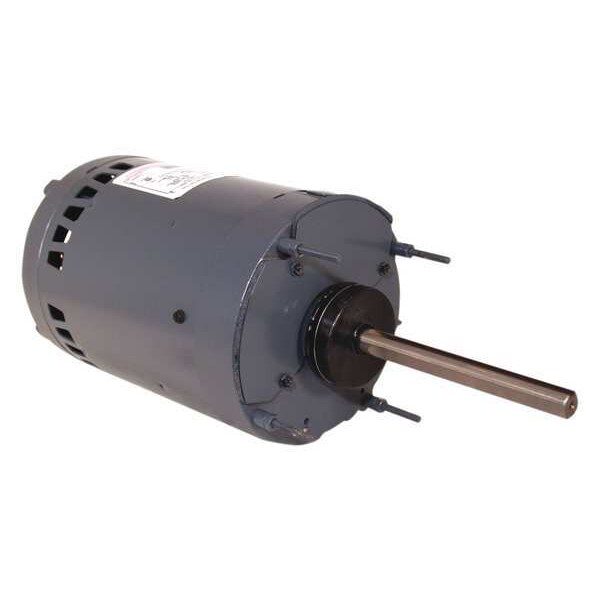

Condenser Fan Motor, 1/2 HP, 850 rpm, 60 Hz (Discontinued)

Free Shipping & Returns

Key Features

  • Motor Design Permanent Split Capacitor
  • Phase Single
  • HP 1/2
  • RPM Range 0-1,000
  • No. of Speeds 1
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Stud Size #10-32
Shaft Length 6 in
Body Dia. 6 1/2 in
Overall Length 16 13/16 in
Resilient Ring Dia. 2 1/2 in
Length Less Shaft 10 13/16 in
Bolt Circle Dia. 5 13/16 in
Mounting Stud Length 1 in

Details

Motor Design Permanent Split Capacitor
Phase Single
HP 1/2
RPM Range 0-1,000
No. of Speeds 1
Voltage 200-230/460V AC
Motor Shaft Rotation CW/CCW
Frame 56Y
Motor Enclosure Design Open Air-Over
Motor Mounting Type Cradle Base
Max. Ambient Temp. 60 Degrees C
Motor Shaft Design Keyed
Motor Thermal Protection Auto
Full Load Amps 1.7/3.5-3.4 A
Hz 60 Hz
Motor Sub Application Condenser Fan
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Features Internal Conduit Box for Enclosed Wiring Connection
Duty Continuous
Motor Mounting Position Vertical Shaft Up
Motor Bearings Ball
Capacitor Required 2MDV9
Mounting Stud Pattern 4 1/8 in x 4 1/8 in
Ring to Ring Center 10 5/16 in
Motor Application HVAC/R
Stud Quantity 4
Nominal Efficiency 65 %
Item Condenser Fan Motor
Nameplate RPM 850
Ins. Class B
Motor Service Factor 1
Standards CSA Certified, UL Recognized
Usable @ 200V Yes
Duty Cycle Continuous
Usable @ 208V Yes
Weight 31 lb
Output Watts 370 W
Motor Frame Material Steel
Conduit Box Location Interior

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 200-230/460V AC, 1.7/3.5-3.4 A Full Load Amps, 56Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base
