  11. Condenser Fan Motor, 1/2 HP, 850 rpm, 60 Hz

This item is Discontinued.

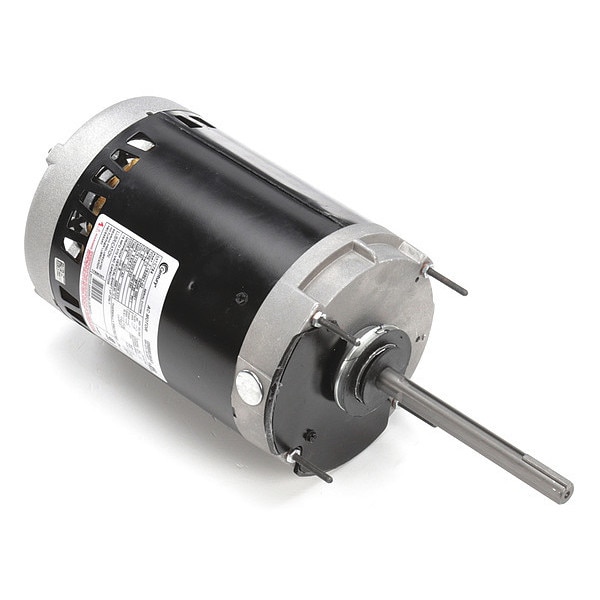

Century Condenser Fan Motor, 1/2 HP, 850 rpm, 60 Hz C784

Condenser Fan Motor, 1/2 HP, 850 rpm, 60 Hz (Discontinued)

  • Mfr # C784
  • Zoro # G1850834
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C784
Zoro #
G1850834
UPC #
-
Country of Origin
Mexico

Dimensions

Resilient Ring Dia.
2 1/2 in
Body Dia.
6 1/2 in
Overall Length
16 7/8 in
Shaft Length
6 in
Stud Size
#10-32
Shaft Dia.
5/8 in
Length Less Shaft
10 7/8 in
Mounting Stud Length
1 in
Bolt Circle Dia.
5 13/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
0-1,000
No. of Speeds
1
Voltage
115/200-230V AC
Motor Shaft Rotation
CW/CCW
Frame
56Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Cradle Base
Item
Condenser Fan Motor
Capacitor Required
2MDV9
Ins. Class
B
Motor Shaft Design
Keyed
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Ring to Ring Center
10 13/16 in
Full Load Amps
6.6/4.0-3.3 A
Standards
CSA Certified, UL Recognized
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Hz
60 Hz
Stud Quantity
4
Duty
Continuous
Features
Internal Conduit Box for Enclosed Wiring Connection
Max. Ambient Temp.
60 Degrees C
Motor Sub Application
Condenser Fan
Nominal Efficiency
64 %
Voltage Compatibility
115/200-230V AC
Motor Bearings
Ball
Motor Mounting Position
Vertical Shaft Up
Nameplate RPM
850
Motor Service Factor
1
Conduit Box Location
Interior
Motor Frame Material
Steel
Weight
36 lb
Output Watts
370 W
Usable @ 200V
Yes
Duty Cycle
Continuous
Usable @ 208V
Yes

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 115/200-230V AC, 6.6/4.0-3.3 A Full Load Amps, 56Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base
