Shop CENTURY

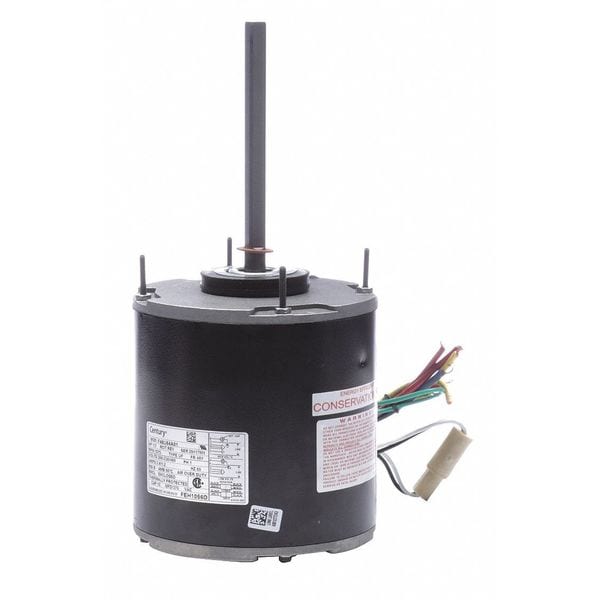

Condenser Fan Motor, 1/2 hp

  • Mfr # FEH1056D

  • Zoro # G0714524

product price:
$
266.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FEH1056D
Zoro #
G0714524
UPC #
-
Country of Origin
Mexico
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Item
Condenser Fan Motor
Motor Service Factor
1
Capacitor Required
Capacitor Not Included
Stud Quantity
4
Motor Shaft Design
Double-Flat
Motor Application
HVAC/R
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Sub Application
Condenser Fan
Ring to Ring Center
6 3/16 in
Motor Bearings
Ball
Full Load Amps
2.4/1.2 A
Max. Ambient Temp.
60 Degrees C
Nominal Efficiency
67 %
Motor Mounting Position
All Angle
Nameplate RPM
1,075
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Ins. Class
B
Motor Thermal Protection
Auto
Duty
Continuous
Removable Base
Yes
Weight
19 lb
Features
Belly Band, Extended Studs Shaft End, Resilient Ring Mounting, Thermally Protected
Output Watts
370 W
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Drive Type
Direct Drive
Wattage
370 W
Sub Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over
Insulation Class
B
Number of Speeds
1
Frame Material
Steel
Includes
Removable Base
Full Load Current @ 60 Hz
2.4/1.2 A
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Application
Condenser Fan
Bearing Type
Ball
Ambient Temperature - Maximum
60 Degrees C
Shaft Design
Double Flat
Mounting Position
All Angle
Frequency
60 Hz

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.4/1.2 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
