  11. Condenser Fan Motor, 1/3 HP, 825 rpm, 60 Hz

This item is Discontinued.

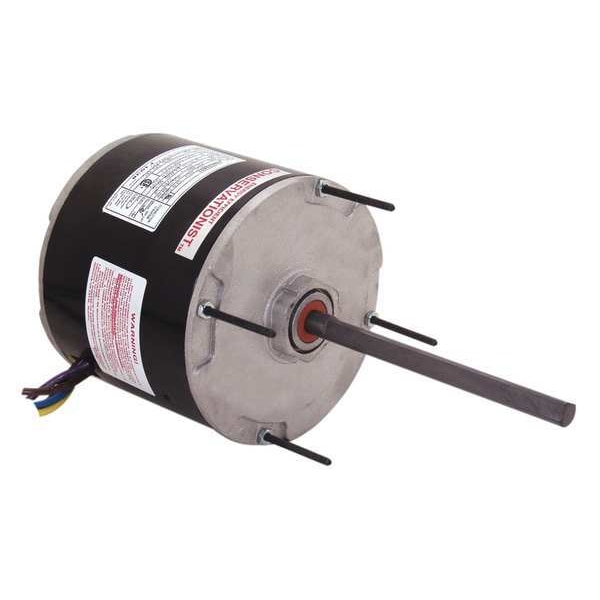

Century Condenser Fan Motor, 1/3 HP, 825 rpm, 60 Hz FL1038

Condenser Fan Motor, 1/3 HP, 825 rpm, 60 Hz (Discontinued)

  • Mfr # FL1038
  • Zoro # G1405433
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FL1038
Zoro #
G1405433
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
11 3/4 in
Length Less Shaft
6 1/4 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Shaft Length
5 1/2 in
Lead Length
27 in
Bolt Circle Dia.
5 3/16 in
Mounting Stud Length
1 5/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
0-1,000
No. of Speeds
1
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Bearings
Ball
Capacitor Required
2MDV6
Stud Quantity
4
Nameplate RPM
825
Ins. Class
B
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps
4.8 A
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Hz
60 Hz
Duty
Continuous
Features
Belly Band, Extended Studs Shaft and Lead End, Mounting Holes in Shell
Motor Application
HVAC/R
Motor Mounting Position
All Angle
Standards
CSA Certified, UL Recognized
Motor Sub Application
Condenser Fan
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Thermal Protection
Auto
Max. Ambient Temp.
60 Degrees C
Item
Condenser Fan Motor
Motor Frame Material
Steel
Output Watts
250 W
Duty Cycle
Continuous
Removable Base
Yes
Usable @ 208V
No
Weight
16 lb
Usable @ 200V
No

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 115V AC, 4.8 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
