  11. Condenser Fan Motor, 1/4 HP, 1625 rpm, 60Hz

This item is Discontinued.

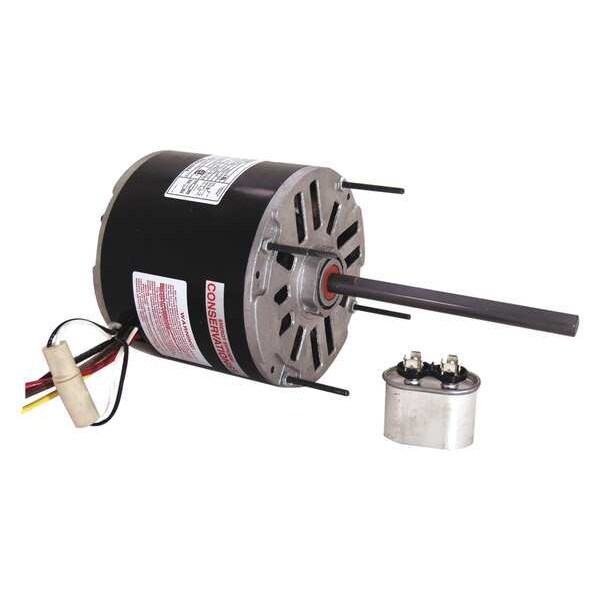

Century Condenser Fan Motor, 1/4 HP, 1625 rpm, 60Hz BDH1024

Condenser Fan Motor, 1/4 HP, 1625 rpm, 60Hz (Discontinued)

  • Mfr # BDH1024
  • Zoro # G0454027
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDH1024
Zoro #
G0454027
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Length Less Shaft
6 3/8 in
Shaft Length
6 7/16 in
Overall Length
11 13/16 in
Lead Length
27 in
Stud Size
#8-32
Mounting Stud Length
1 5/8 in
Bolt Circle Dia.
5 3/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,601-1,700
No. of Speeds
2
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Nameplate RPM
1,625
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Shaft Design
Flat
Motor Bearings
Ball
Nominal Efficiency
67 %
Motor Sub Application
Condenser Fan
Hz
60 Hz
Duty
Continuous
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Features
Extended Studs Shaft End, Hex Mounting Hub on Both Ends, Thermally Protected
Capacitor Required
Included
Standards
CSA Certified, UL Recognized
Stud Quantity
4
Max. Ambient Temp.
60 Degrees C
Full Load Amps
0.9 A
Motor Service Factor
1
Item
Direct Drive Blower Motor
Ins. Class
B
Motor Mounting Position
Horizontal or Vertical Shaft Up
Weight
14 lb
Output Watts
190 W
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous
Motor Frame Material
Steel

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 2, Voltage 460V AC, 0.9 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
