  6. Condenser Fan Motor, 1/6 HP, 1075 rpm, 60Hz

This item is Discontinued.

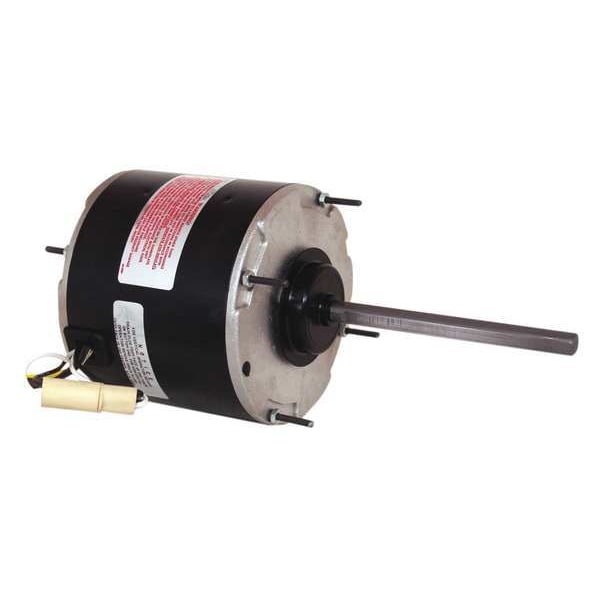

Century Condenser Fan Motor, 1/6 HP, 1075 rpm, 60Hz FSE1016SV1

Condenser Fan Motor, 1/6 HP, 1075 rpm, 60Hz (Discontinued)

  • Mfr # FSE1016SV1
  • Zoro # G1433722
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FSE1016SV1
Zoro #
G1433722
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
6 7/16 in
Overall Length
11 1/8 in
Lead Length
36 in
Shaft Dia.
1/2 in
Length Less Shaft
4 11/16 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Mounting Stud Length
11/16 in
Bolt Circle Dia.
5 3/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/6
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Sub Application
Condenser Fan
Motor Service Factor
1
Capacitor Required
2MDV4
Item
Condenser Fan Motor
Full Load Amps
1.3 A
Motor Application
HVAC/R
Nameplate RPM
1,075
Stud Quantity
4
Max. Ambient Temp.
60 Degrees C
Duty
Continuous
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Features
Extended Studs Shaft and Lead End, Thermally Protected
Ins. Class
B
Motor Mounting Position
All Angle
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Thermal Protection
Auto
Motor Shaft Design
Double-Flat
Standards
CSA Certified, UL Recognized
Motor Bearings
Sleeve
Replacement For
Mfr. No. EM3727, 3727
Usable @ 200V
No
Usable @ 208V
Yes
Output Watts
130 W
Duty Cycle
Continuous
Weight
11 lb
Motor Frame Material
Steel

Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/6 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CW/CCW, 48Y Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 7/16 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 1.3 A, Ins. Class B, Motor Service Factor 1
