  11. Condenser Fan Motor, 1/6to1/3HP, 1075 rpm
This item is Discontinued.

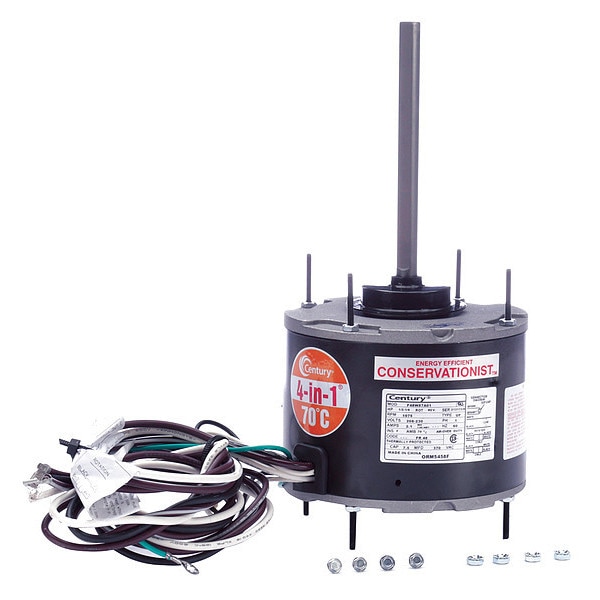

Century Condenser Fan Motor, 1/6to1/3HP, 1075 rpm ORM5458F

Condenser Fan Motor, 1/6to1/3HP, 1075 rpm (Discontinued)

  • Mfr # ORM5458F
  • Zoro # G1066247
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ORM5458F
Zoro #
G1066247
UPC #
-
Country of Origin
India

Dimensions

Overall Length
11 1/2 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Lead Length
48 in
Shaft Length
6 1/2 in
Length Less Shaft
5 in
Mounting Stud Length
1 1/8 in
Bolt Circle Dia.
5 1/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Thermal Protection
Auto
Motor Service Factor
1
Hz
60 Hz
Motor Shaft Design
Double-Flat
Motor Mounting Position
All Angle
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Max. Ambient Temp.
70 Degrees C
Duty
Continuous
Motor Application
HVAC/R
Ins. Class
F
Capacitor Required
2MDV6
Motor Bearings
Sleeve
Motor Sub Application
Condenser Fan
Features
All Angle Mounting, Energy Efficient PSC Design, Removable Drain Plugs Each End, Rheem Mounting Holes
Full Load Amps
2.1 A
Nameplate RPM
1,075
Item
Condenser Fan Motor
Stud Quantity
4
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Includes
Belly Band
Output Watts
250 W
Weight
12 lb
Replacement For
Mfr. No. 3458HS
Removable Base
No
Usable @ 200V
No
Usable @ 208V
Yes
Motor Frame Material
Steel
Motor Flange Type
Non-Ventilated

Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/3 to 1/6 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CW/CCW, 48 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Stud Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 6 1/2 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 2.1 A, Ins. Class F, Motor Service Factor 1
