  11. Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz

This item is Discontinued.

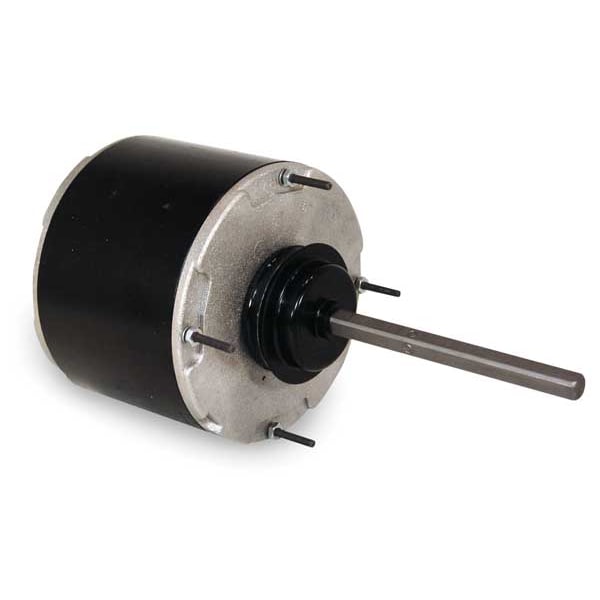

Century Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz FEH1076D

Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz (Discontinued)

  • Mfr # FEH1076D
  • Zoro # G1486396
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FEH1076D
Zoro #
G1486396
UPC #
-
Country of Origin
Mexico

Dimensions

Stud Size
#8-32
Body Dia.
5 5/8 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
6 in
Length Less Shaft
6 5/8 in
Overall Length
12 5/8 in
Shaft Dia.
1/2 in
Lead Length
6 in
Mounting Stud Length
7/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Capacitor Required
2MDV7
Motor Sub Application
Condenser Fan
Nameplate RPM
1,075
Stud Quantity
4
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Bearings
Ball
Motor Thermal Protection
Auto
Motor Mounting Position
All Angle
Item
Condenser Fan Motor
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Features
Belly Band, Extended Studs Shaft End, Resilient Ring Mounting, Thermally Protected
Ins. Class
B
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Duty
Continuous
Nominal Efficiency
63 %
Motor Application
HVAC/R
Ring to Ring Center
6 11/16 in
Full Load Amps
3.4/1.7 A
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Max. Ambient Temp.
60 Degrees C
Usable @ 200V
No
Weight
21 lb
Output Watts
560 W
Motor Frame Material
Steel
Usable @ 208V
Yes
Removable Base
Yes
Duty Cycle
Continuous

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.4/1.7 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
