This item is Discontinued.

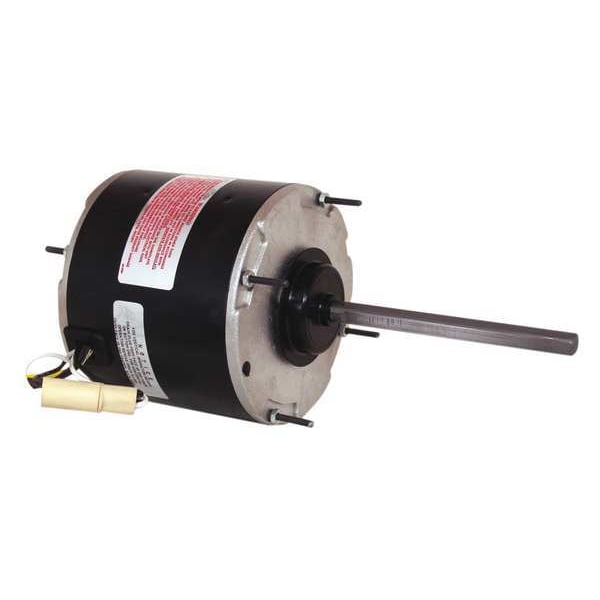

Century Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz FSE1076SV1

Condenser Fan Motor, 3/4 HP, 1075 rpm, 60Hz (Discontinued)

  • Mfr # FSE1076SV1
  • Zoro # G1941387
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FSE1076SV1
Zoro #
G1941387
UPC #
-
Country of Origin
India

Dimensions

Length Less Shaft
6 1/4 in
Shaft Length
6 7/16 in
Overall Length
12 11/16 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Lead Length
36 in
Mounting Stud Length
11/16 in
Bolt Circle Dia.
5 3/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Stud Quantity
4
Motor Bearings
Sleeve
Motor Thermal Protection
Auto
Motor Shaft Design
Double-Flat
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Ins. Class
B
Duty
Continuous
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Mounting Position
All Angle
Full Load Amps
5.2 A
Hz
60 Hz
Motor Service Factor
1
Features
Extended Studs Shaft and Lead End, Thermally Protected
Motor Sub Application
Condenser Fan
Capacitor Required
2MDV9
Motor Application
HVAC/R
Nameplate RPM
1,075
Item
Condenser Fan Motor
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
60 Degrees C
Replacement For
Mfr. No. 3731, EM3731
Weight
18 lb
Motor Frame Material
Steel
Usable @ 208V
Yes
Output Watts
560 W
Usable @ 200V
No
Duty Cycle
Continuous

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, 5.2 A Full Load Amps, 48Y Frame, Output Watts 560 W, 60 Hz Hz, Replacement For Mfr. No. 3731, EM3731, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
