  6. Condenser Fan Motor, 7/16HP, 1075 rpm, 60Hz

This item is Discontinued.

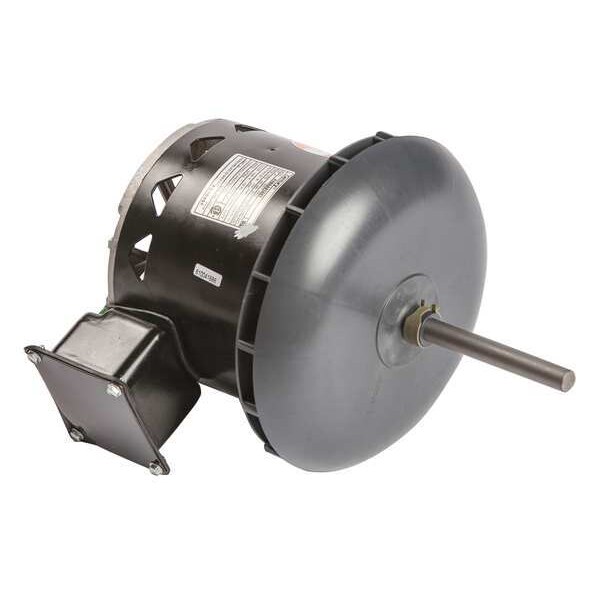

Century Condenser Fan Motor, 7/16HP, 1075 rpm, 60Hz FC1046F

Condenser Fan Motor, 7/16HP, 1075 rpm, 60Hz (Discontinued)

  • Mfr # FC1046F
  • Zoro # G0708084
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FC1046F
Zoro #
G0708084
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
5 5/8 in
Lead Length
5 in
Shaft Length
3 5/8 in
Length Less Shaft
7 1/8 in
Overall Length
10 3/4 in
Shaft Dia.
1/2 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
7/16
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Bearings
Ball
Motor Thermal Protection
Auto
Motor Sub Application
Condenser Fan
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Ins. Class
F
Features
Belly Band, Thermally Protected, Vertical Shaft Up
Full Load Amps
3.2/1.6 A
Nameplate RPM
1,075
Motor Mounting Position
Vertical Shaft Up
Standards
CSA Certified, UL Recognized
Duty
Continuous
Max. Ambient Temp.
70 Degrees C
Item
Condenser Fan Motor
Capacitor Required
2MDY5
Motor Service Factor
1
Hz
60 Hz
Motor Application
HVAC/R
Motor Shaft Design
Double-Flat
Usable @ 208V
Yes
Weight
15 lb
Conduit Box Position
F1
Removable Base
Yes
Duty Cycle
Continuous
Output Watts
300 W
Usable @ 200V
Yes
Motor Frame Material
Steel
Conduit Box Location
Exterior

Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Phase Single, 7/16 HP, No. of Speeds 1, Voltage 200-230/460V AC, Motor Shaft Rotation CW/CCW, 48Y Frame, Motor Enclosure Design Open Air-Over, Band Motor Mounting Type, Motor Mounting Position Vertical Shaft Up, Shaft Dia. 1/2 in, Shaft Length 3 5/8 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 3.2/1.6 A, Ins. Class F, Motor Service Factor 1
