Shop CENTURY

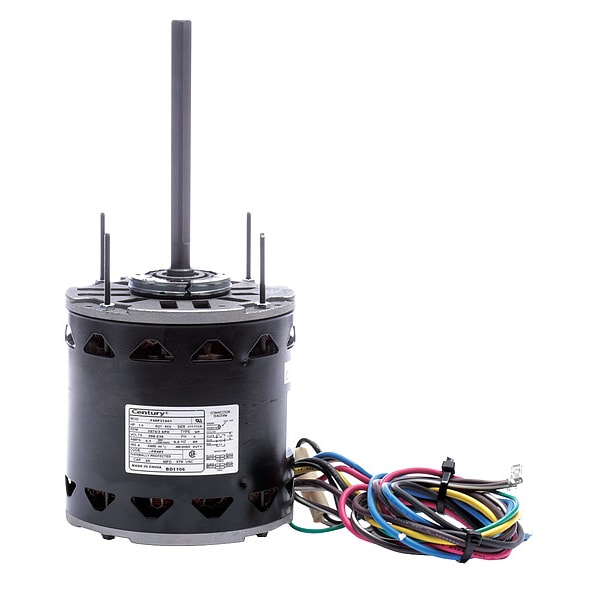

Direct Drive Fan/Blower Motor, 1 hp

  • Mfr # BD1106

  • Zoro # G0789330

product price:
$
370.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Enclosed
HP
1
RPM Range
1,001-1,100
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BD1106
Zoro #
G0789330
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2 in
Overall Length
12 1/2 in
Shaft Length
6 13/32 in
Length Less Shaft
6 3/32 in
Stud Size
#8-32
Lead Length
27 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
5 5/8 in
Mounting Stud Length
1 63/100 in
Frame Size
48Y
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
1/2 in
Wire Rope Length
12 1/2 in

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Enclosed
HP
1
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
208-230V AC
Motor Service Factor
1
Motor Bearings
Ball
No. of Speeds
3
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Stud Quantity
4
Max. Ambient Temp.
40 Degrees C
Phase
Single
Hz
60 Hz
Ins. Class
B
Motor Mounting Type
Resilient Ring/Extended Studs
Standards
CSA Certified, UL Listed
Full Load Amps
4.8 A
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Included
Nominal Efficiency
70 %
Usable @ 208V
Usable at 208V
Frame
48Y
Motor Shaft Design
Double-Flat
Weight
20 lb
Motor Mounting Position
Horizontal
Output Watts
0.75 kW
Ring to Ring Center
6 17/100 in
Usable @ 200V
Usable at 200V
Motor Application
Direct Drive Fan/Blower
Motor Frame Material
Steel
Voltage Compatibility
208V AC, 230V AC
Motor Sub Application
Direct Drive Fan/Blower
Inverter Rated
No
Shaft Design
Double Flat
Full Load Current @ 60 Hz
4.8 A
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Bearing Type
Ball
Frequency
60 Hz
Product Type
Fan and Blower Motor
Insulation Class
B
Drive Type
Belt Drive
Inverter Rating
Not Inverter Rated
Frame Material
Steel
Motor Enclosure Type
Open
Wattage
750 W
Nameplate Service Factor @ 60 Hz
1
Number of Speeds
3
Mounting Position
Horizontal

Description

Direct Drive Fan/Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 208-230V AC, 4.8 A Full Load Amps, 48Y Frame, Output Watts 0.75 kW, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Enclosed, Motor Frame Material Steel, Inverter Rated No, Motor Mounting Position Horizontal
