  11. Fan Motor, 1/2 HP, 1625 rpm, 60/50Hz

This item is Discontinued.

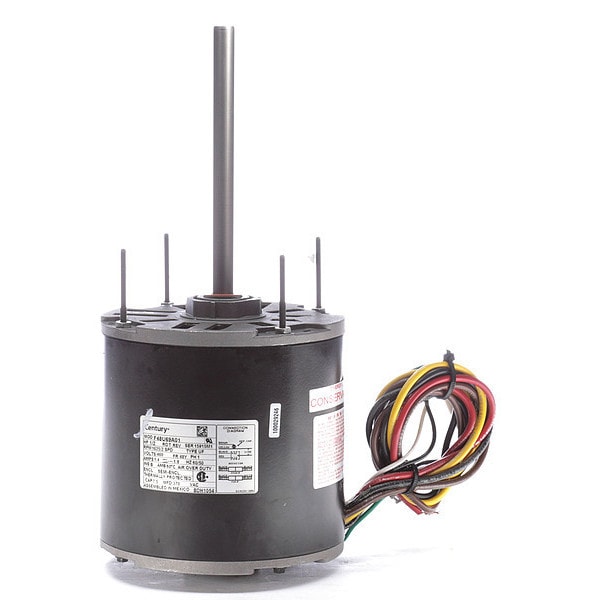

Century Fan Motor, 1/2 HP, 1625 rpm, 60/50Hz BDH1054

Fan Motor, 1/2 HP, 1625 rpm, 60/50Hz (Discontinued)

  • Mfr # BDH1054
  • Zoro # G2336345
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDH1054
Zoro #
G2336345
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
6 7/16 in
Overall Length
12 1/4 in
Length Less Shaft
5 13/16 in
Stud Size
#8-32
Lead Length
27 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Mounting Stud Length
1 5/8 in
Bolt Circle Dia.
5 3/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,601-1,700
No. of Speeds
2
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Max. Ambient Temp.
60 Degrees C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Motor Bearings
Ball
Motor Application
HVAC/R
Hz
60 Hz
Stud Quantity
4
Motor Mounting Position
Horizontal or Vertical Shaft Up
Ins. Class
B
Nameplate RPM
1,625
Features
Extended Studs Shaft End, Hex Mounting Hub on Both Ends, Thermally Protected
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Capacitor Required
Included
Motor Sub Application
Condenser Fan
Full Load Amps
1.4 A
Item
Direct Drive Blower Motor
Motor Thermal Protection
Auto
Nominal Efficiency
64 %
Standards
CSA Certified, UL Recognized
Motor Shaft Design
Flat
Duty
Continuous
Motor Service Factor
1
Weight
19 lb
Motor Frame Material
Steel
Output Watts
370 W
Usable @ 208V
No
Usable @ 200V
No
Duty Cycle
Continuous

Description

Direct Drive Blower Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/2 HP, No. of Speeds 2, Voltage 460V AC, Motor Shaft Rotation CW/CCW, 48Y Frame, Motor Enclosure Design Open Air-Over, Stud Motor Mounting Type, Motor Mounting Position Horizontal or Vertical Shaft Up, Shaft Dia. 1/2 in, Shaft Length 6 7/16 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,625, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 1.4 A, Ins. Class B, Motor Service Factor 1
